Rear Seat Heater Vent Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

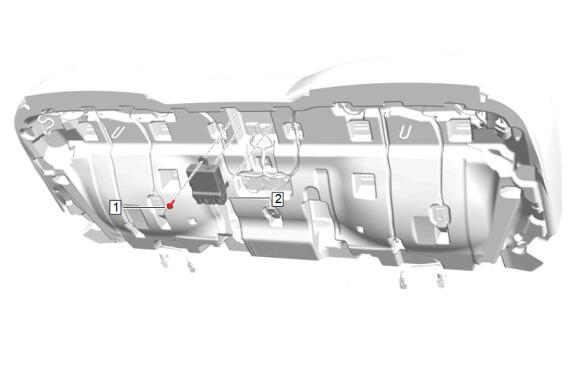

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Seat Cushion Removal and Installation
1	Rear Seat Heater Vent Control Module Bolt CAUTION: refer to Fastener Caution Tighten 2 N.m (18 lb in)
2	Rear Seat Heater Vent Control Module Procedure Disconnect the electrical connector. Release the retaining tabs to remove the rear seat heater vent control module (2).

Callout

Component Name

Rear Seat Heater Vent Control Module Bolt

CAUTION:

Tighten
2 N.m (18 lb in)

Rear Seat Heater Vent Control Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs to remove the rear seat heater vent control module (2).
