Front Floor Console Trim Plate Replacement

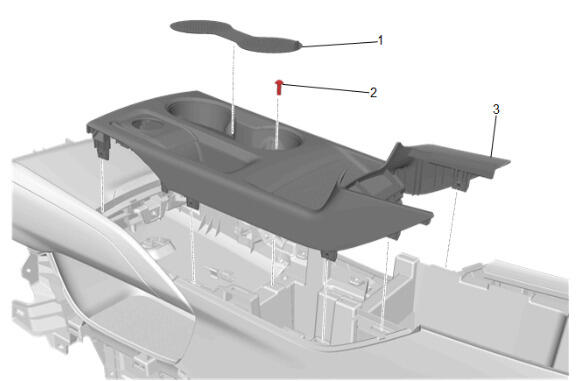

GM6408026Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Trim Plate Replacement

Callout Component Name

Preliminary Procedures

  1. Front Floor Console Compartment Replacement
1 Front Floor Console Cup Holder Liner
2 Front Floor Console Trim Plate Bolt
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
3 Front Floor Console Trim Plate

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
