Front Floor Console Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

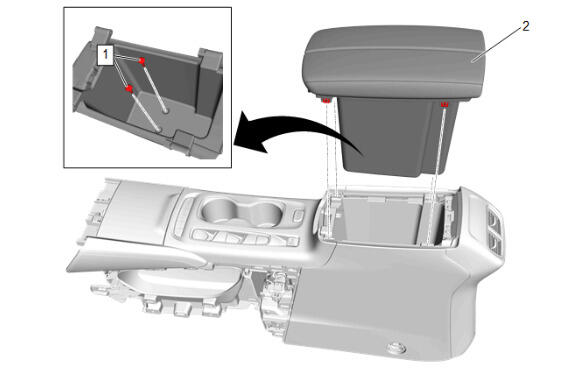

NOTE: Callout items in the following chart represent components shown in graphic above.

Front Floor Console Compartment Replacement

Callout	Component Name
1	Front Floor Console Compartment Bolt [2x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Compartment Procedure  Use a flat bladed plastic tool to remove.
