Front Floor Console Side Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

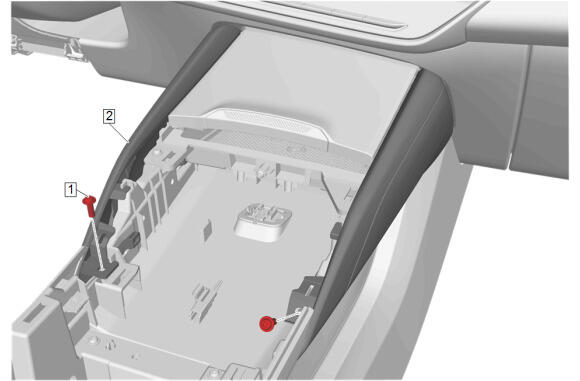

NOTE: Callout items in the following chart represent components shown in graphic above.

Front Floor Console Side Trim Panel Replacement

Callout	Component Name
Preliminary Procedure  Front Floor Console Removal and Installation  Front Floor Console Trim Plate Replacement
1	Front Floor Console Side Trim Panel Bolt [2x] CAUTION: Fastener Caution Tighten  3.8 N.m (34 lb in)
2	Front Floor Console Side Trim Panel [2x]
