Front Floor Console Front Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

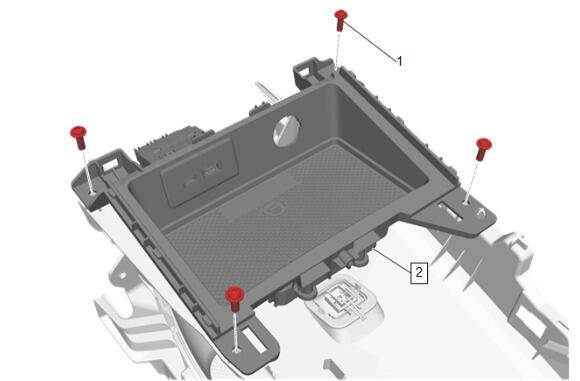

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Floor Console Center Compartment Replacement
1	Front Floor Console Bolt @ Front Floor Console Front Compartment [4x] CAUTION: Fastener Caution Tighten 3.8 N.m (34 lb in)
3	Front Floor Console Front Compartment Procedure If equipped, disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Floor Console Bolt @ Front Floor Console Front Compartment [4x]

CAUTION:

Tighten
3.8 N.m (34 lb in)

Front Floor Console Front Compartment

Procedure
