Front Floor Console Center Compartment Replacement

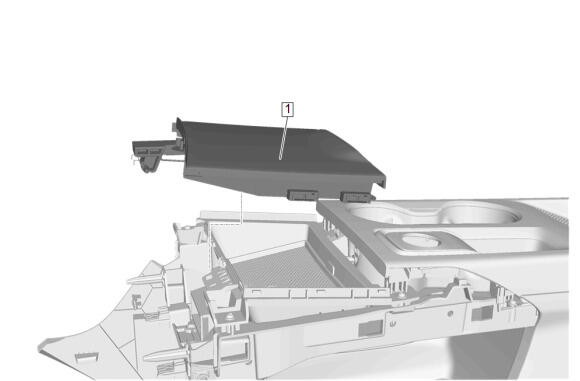

GM6408020Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Floor Console Center Compartment Replacement

Callout Component Name

Preliminary Procedures

  1. Front Floor Console Side Trim Panel Replacement
3 Front Floor Console Center Compartment

Procedure

  1. If equipped, disconnect the electrical connector.
  2. Transfer components as necessary.
