Radio Replacement

Courtesy of GENERAL MOTORS COMPANY

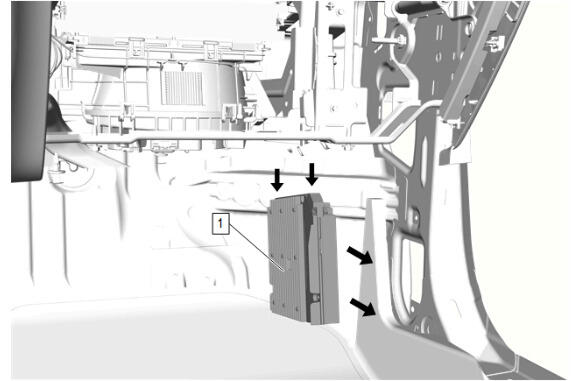

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
1	Radio Procedure Disconnect the electrical connectors. Release the retaining tabs. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Radio

Procedure
