Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

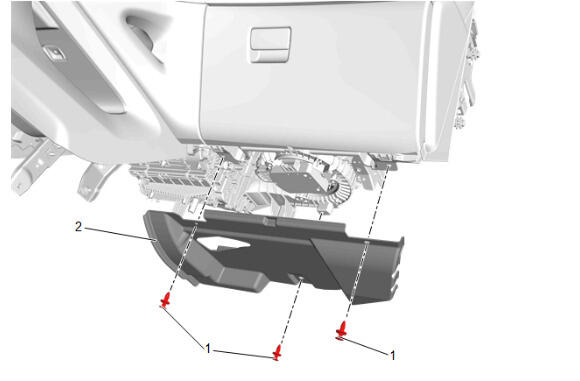

Callout items in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 1 |
Instrument Panel Lower Trim Panel Insulator Retainer [3x]
Procedure
Use a flat bladed plastic tool to remove. |
| 2 |
Instrument Panel Lower Trim Panel Insulator - Right Side |
