Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal with Position Sensor (1) - Install - Accelerator Pedal with Position Sensor Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

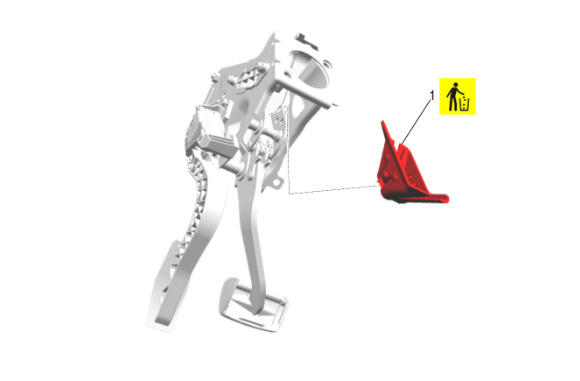

Brake Pedal Retainer (1) - Install NEW

NOTE:

Align the power brake booster pushrod with the brake pedal retainer.

Install the brake pedal assembly.
Position the brake and accelerator pedal assembly and secure the wire harness retainer.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake and Accelerator Pedal Bracket Bolt (1) - Install and tighten [2x] 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Bracket Bolt (1) - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Retainer (1) - Install
Brake Pedal (2) - Secure
Accelerator Pedal Position Sensor Electrical Connector - Connect
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Position Sensor (1) - Install - Brake Pedal Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Reposition and install the radiator surge tank. Radiator Surge Tank Replacement
