Cellular, Entertainment, And Navigation - Repair Instructions
>>
Repair Instructions
>>

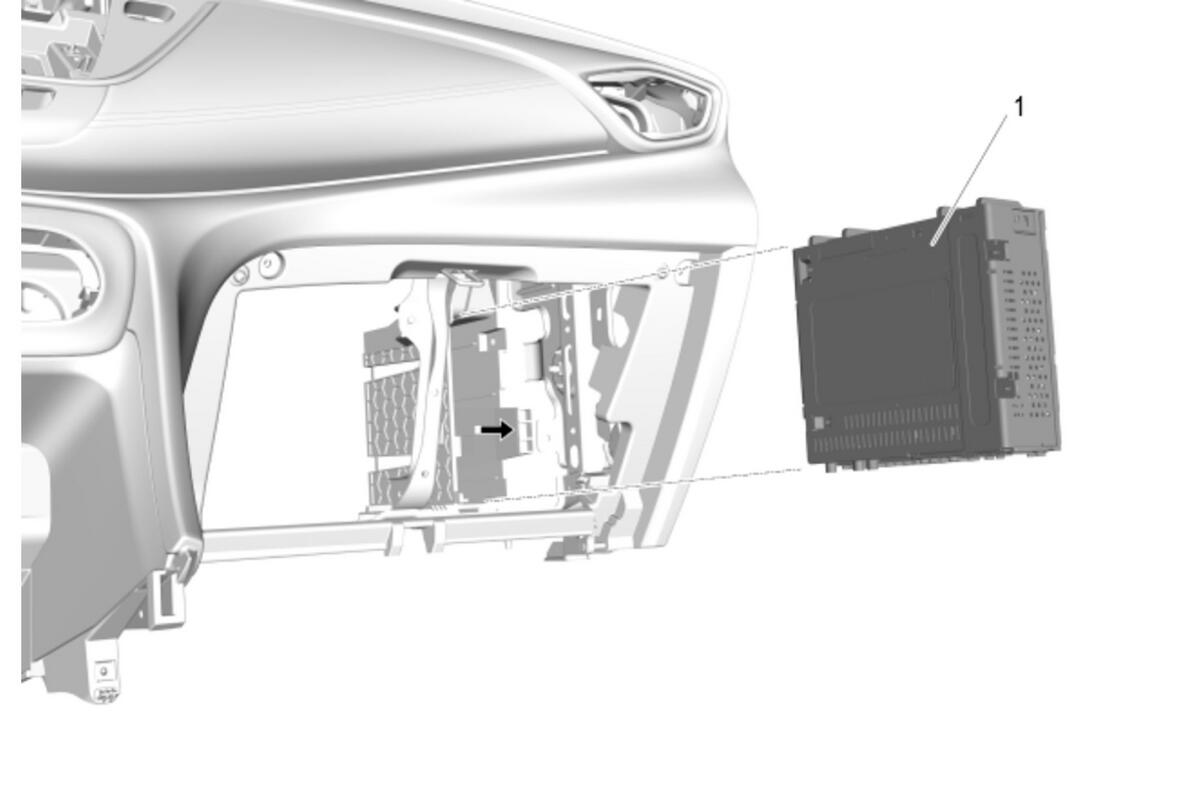

Radio Replacement
Radio Replacement
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Instrument Panel Compartment Door Replacement
Instrument Panel Lower Trim Panel Insulator Replacement
Instrument Panel Lower Airbag Replacement - Passenger Side
1
Radio
Procedure
Disconnect the electrical connectors.
Release the retaining tabs.
Perform the necessary programming and setup procedure:
Control Module References
