Removal Procedure

  1. GM5153389Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Remove - Instrument Panel Outer Trim Cover Replacement - Left Side

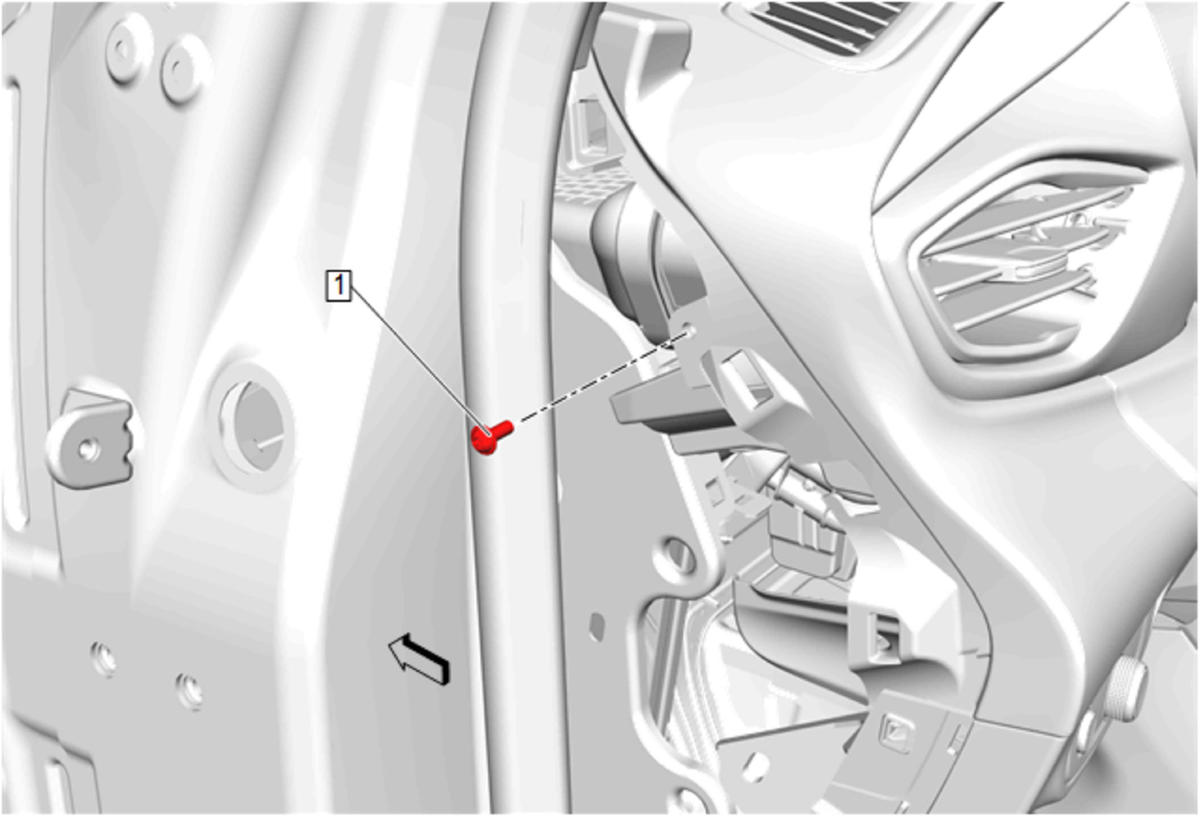

  2. GM5162904Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Air Outlet Duct Bolt (1) - Remove

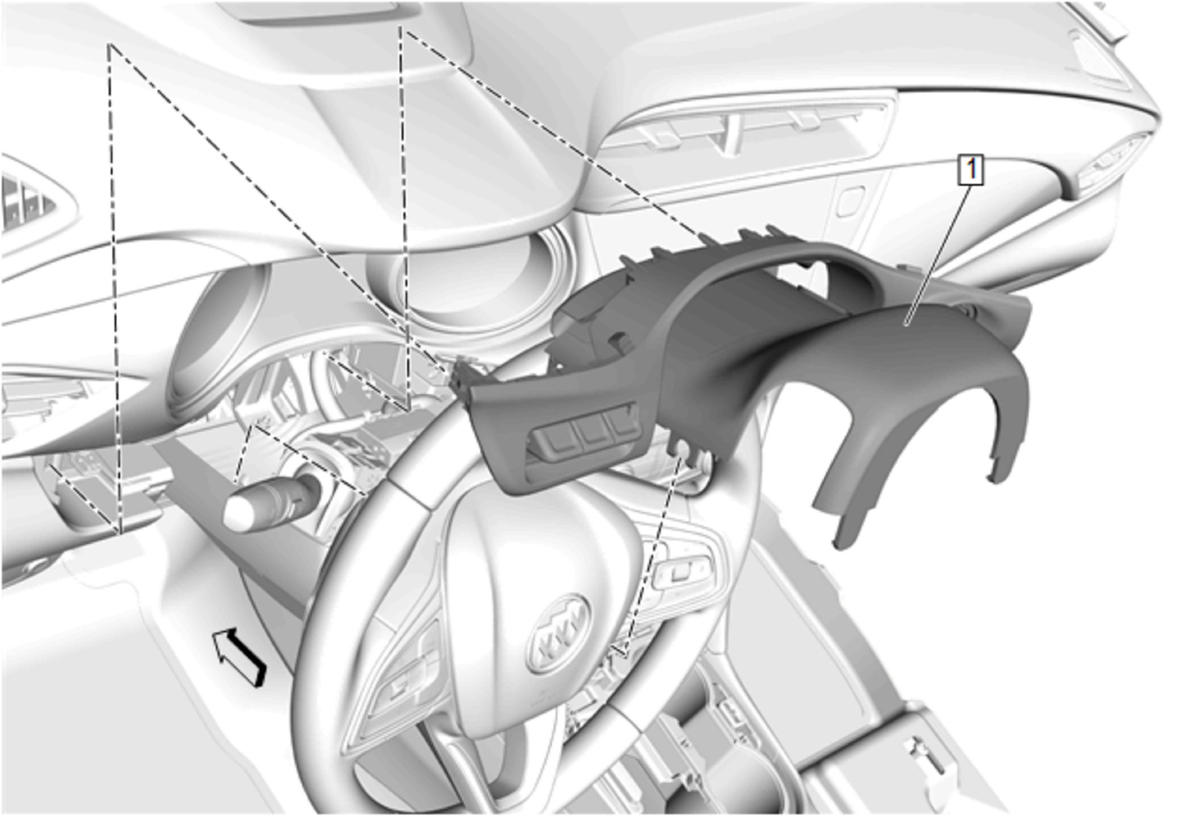

  3. GM5341802Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Remove - Instrument Panel Steering Column Upper Trim Cover Replacement

  4. GM5159632Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Remove - Instrument Panel Trim Plate Applique Replacement

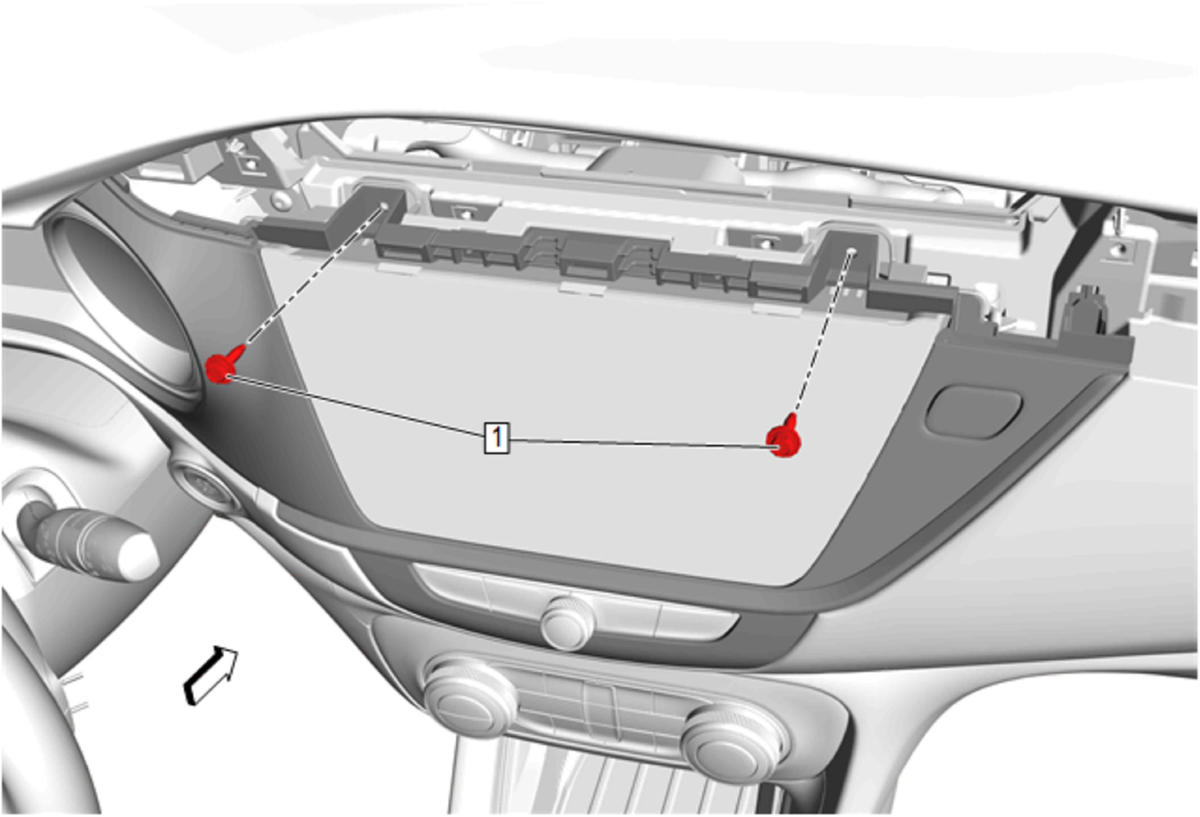

  5. GM5162287Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Bolt (1) - Remove [2x]

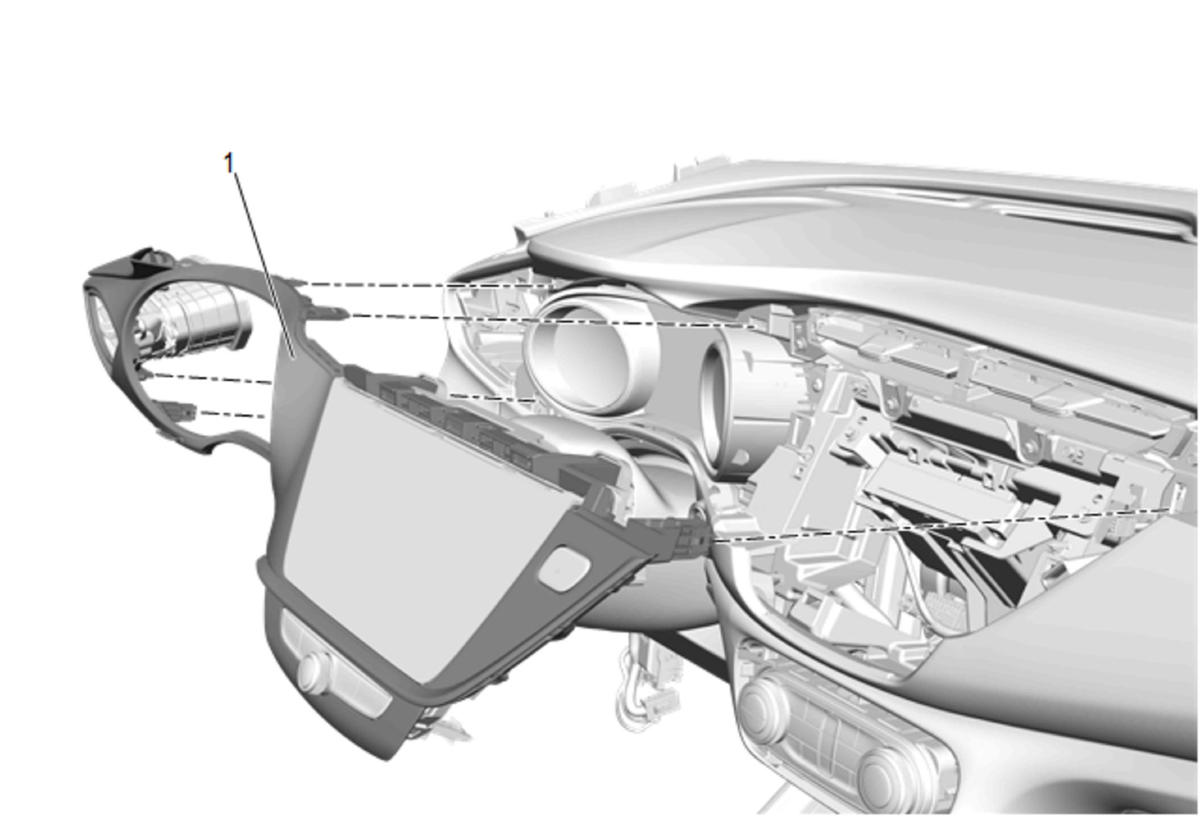

  6. GM5162294Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (1) - Remove - Use a flat bladed plastic tool to remove.

  7. Disconnect the electrical connectors.
  8. Instrument Panel Outer Air Outlet - Left Side - Remove - Instrument Panel Outer Air Outlet Replacement - Left Side

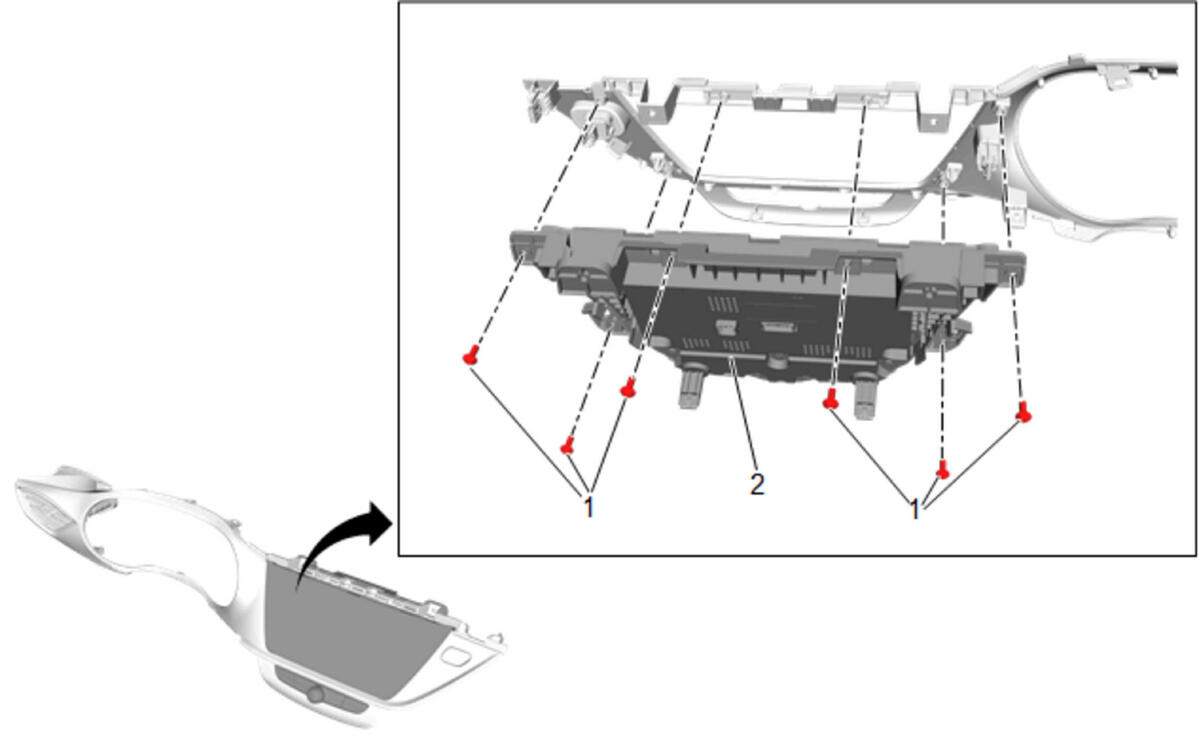

  9. GM5162286Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Remove - Radio Control Assembly Replacement

  10. Transfer components as necessary.
