Instrument Panel Outer Air Outlet Replacement - Left Side

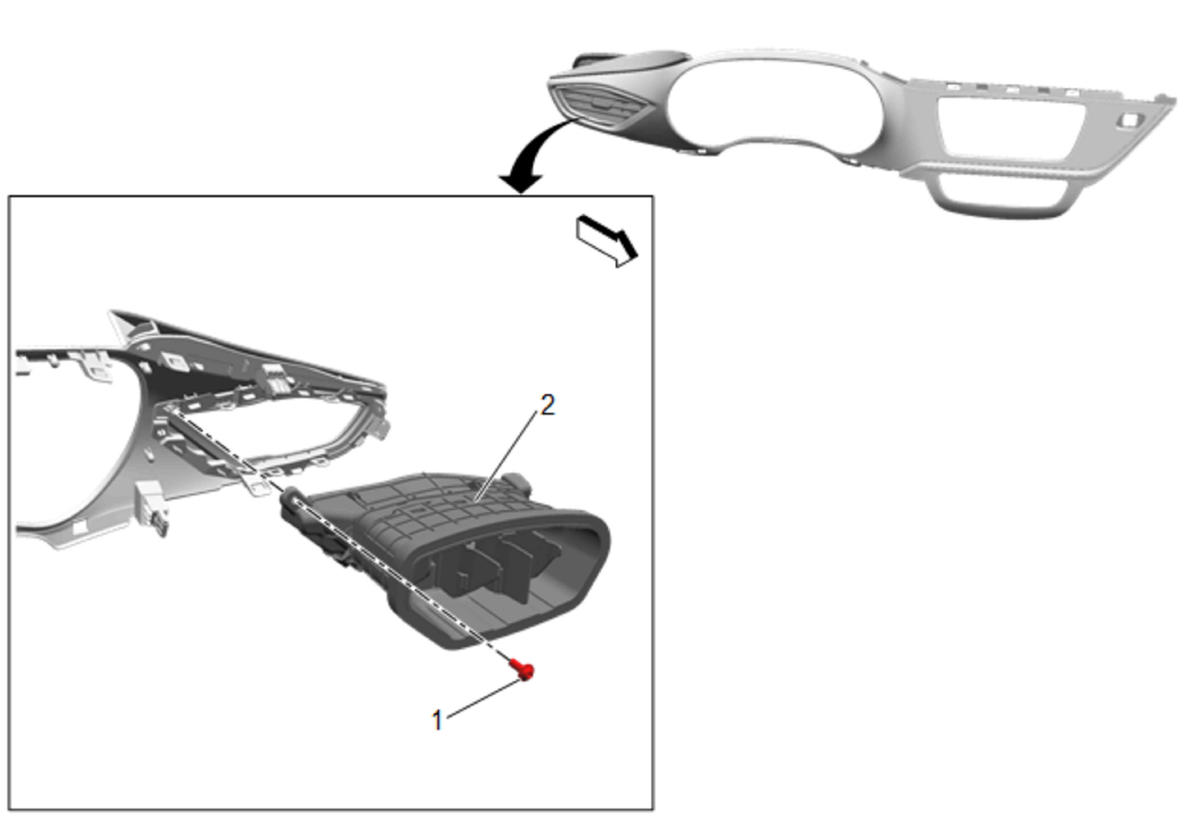

GM5223700Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Trim Plate Replacement
1 Instrument Panel Outer Air Outlet Screw
CAUTION:

Refer to Fastener Caution .
2 Instrument Panel Outer Air Outlet - Left Side

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Release the plastic retaining tabs.
