Instrument Panel Compartment Replacement

Courtesy of GENERAL MOTORS COMPANY

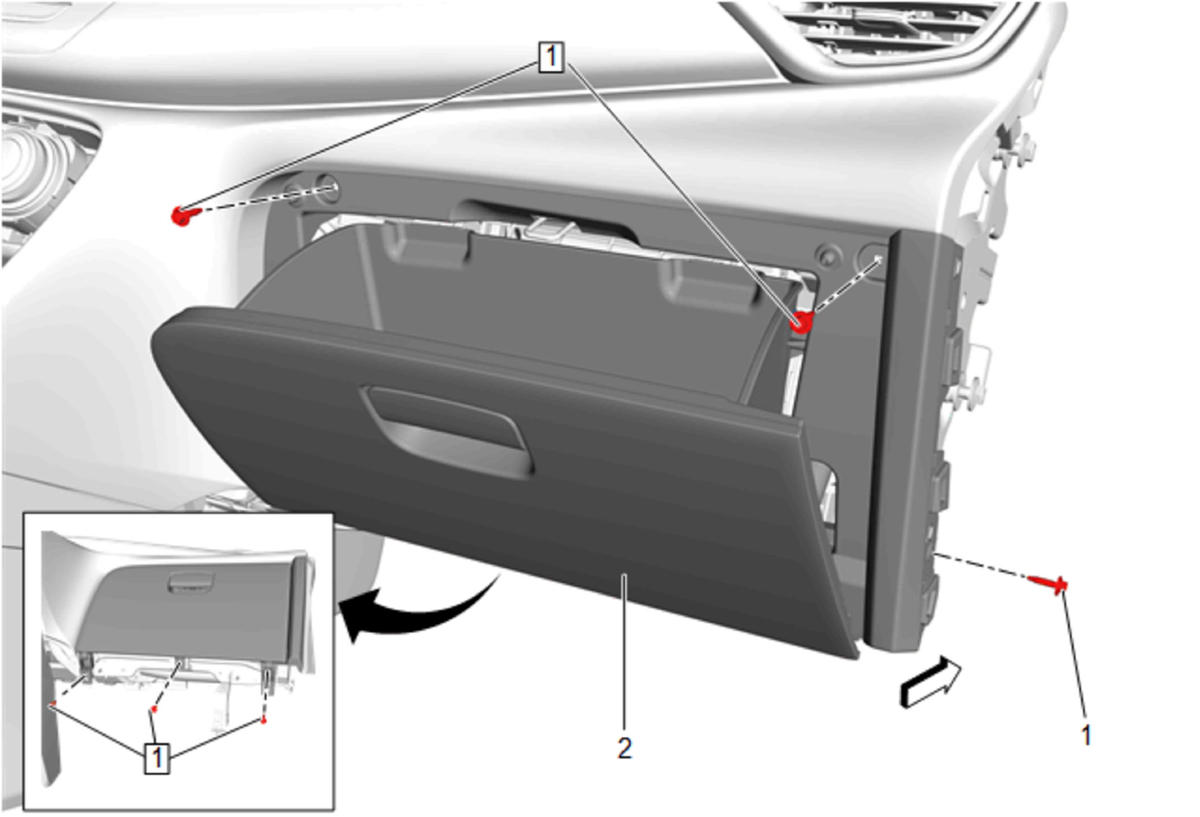

Callout	Component Name
Preliminary Procedures Instrument Panel Outer Trim Cover Replacement - Right Side Instrument Panel Lower Trim Panel Insulator Replacement Instrument Panel Lower Airbag Replacement - Passenger Side
1	Instrument Panel Compartment Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Compartment

Callout

Component Name

Preliminary Procedures

Instrument Panel Compartment Bolt [6x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Compartment
