Removal Procedure

Battery Negative Cable - Disconnect - Battery Negative Cable Disconnection and Connection
Courtesy of GENERAL MOTORS COMPANY

Head-Up Display Bezel (1) - Remove - Head-Up Display Bezel Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Cluster (2) - Remove - Instrument Cluster Replacement
Courtesy of GENERAL MOTORS COMPANY

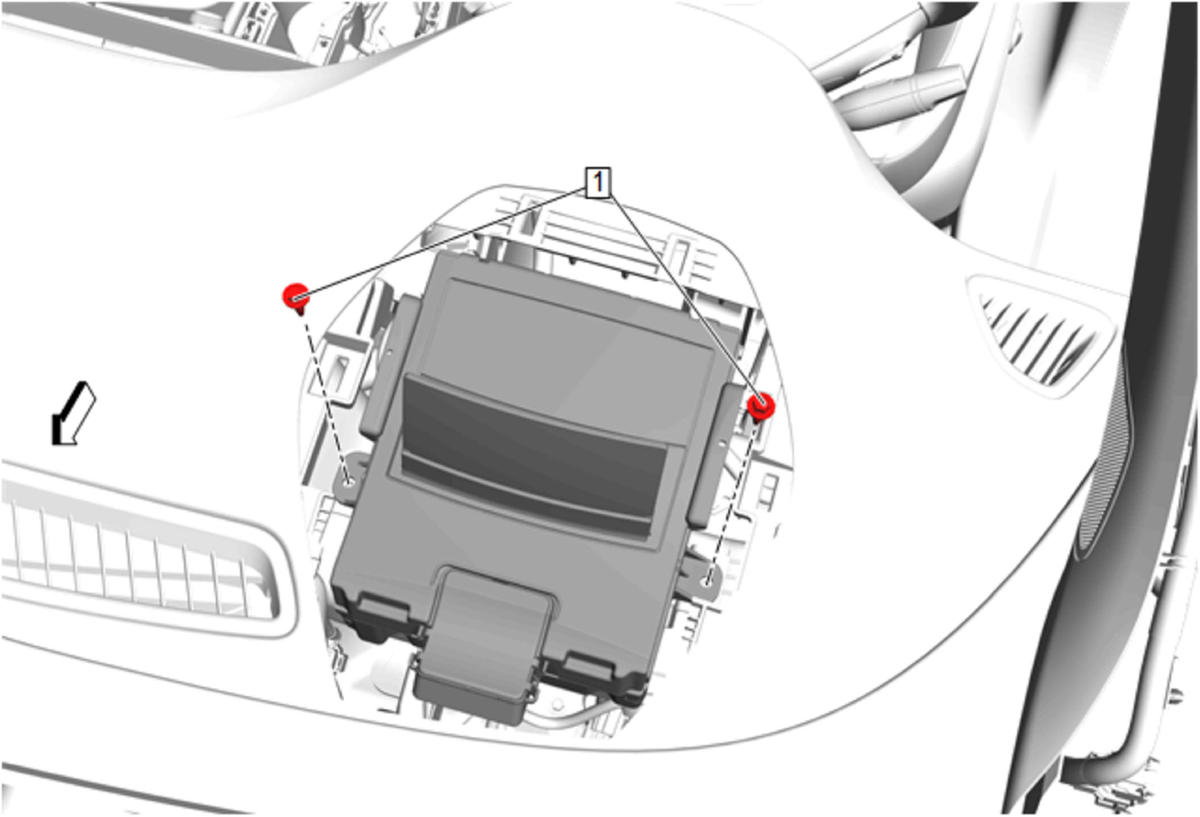

Head-Up Display Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

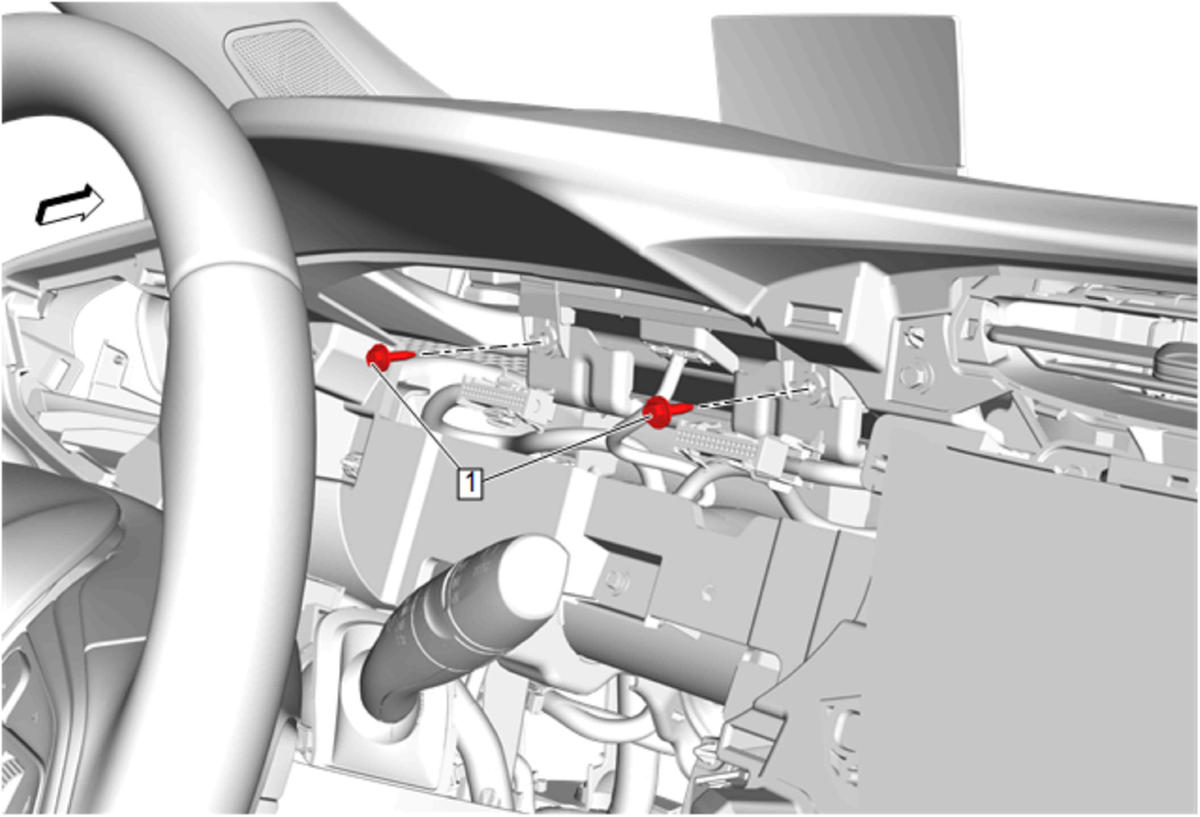

Head-Up Display Bolt (1) - Remove [2x]
Disconnect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Head-Up Display (1) - Remove
