Instrument Cluster Replacement

Courtesy of GENERAL MOTORS COMPANY

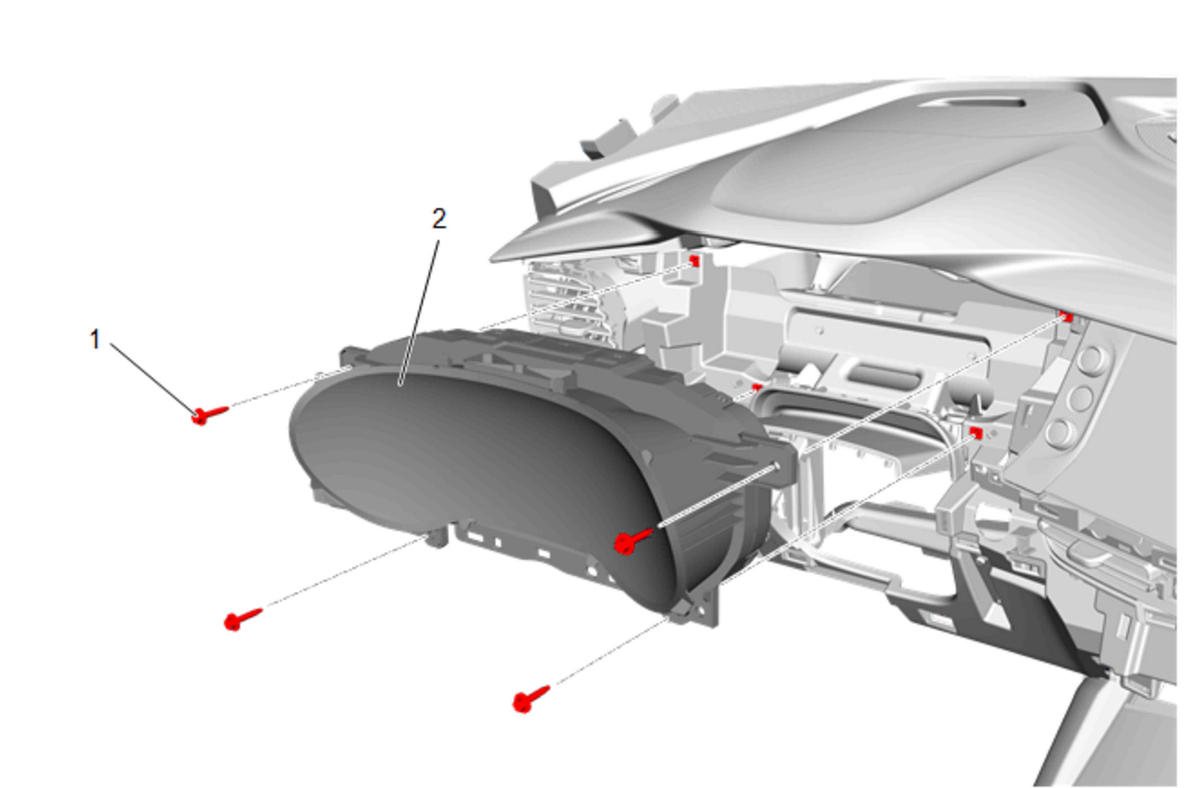

Callout	Component Name
Preliminary Procedures Instrument Panel Center Trim Plate Applique Replacement Instrument Panel Cluster Trim Plate Replacement
1	Instrument Cluster Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connector. If required, perform the programming and setup procedures. Control Module References .

Callout

Component Name

Preliminary Procedures

Instrument Cluster Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure

Disconnect the electrical connector.
If required, perform the programming and setup procedures. Control Module References .
