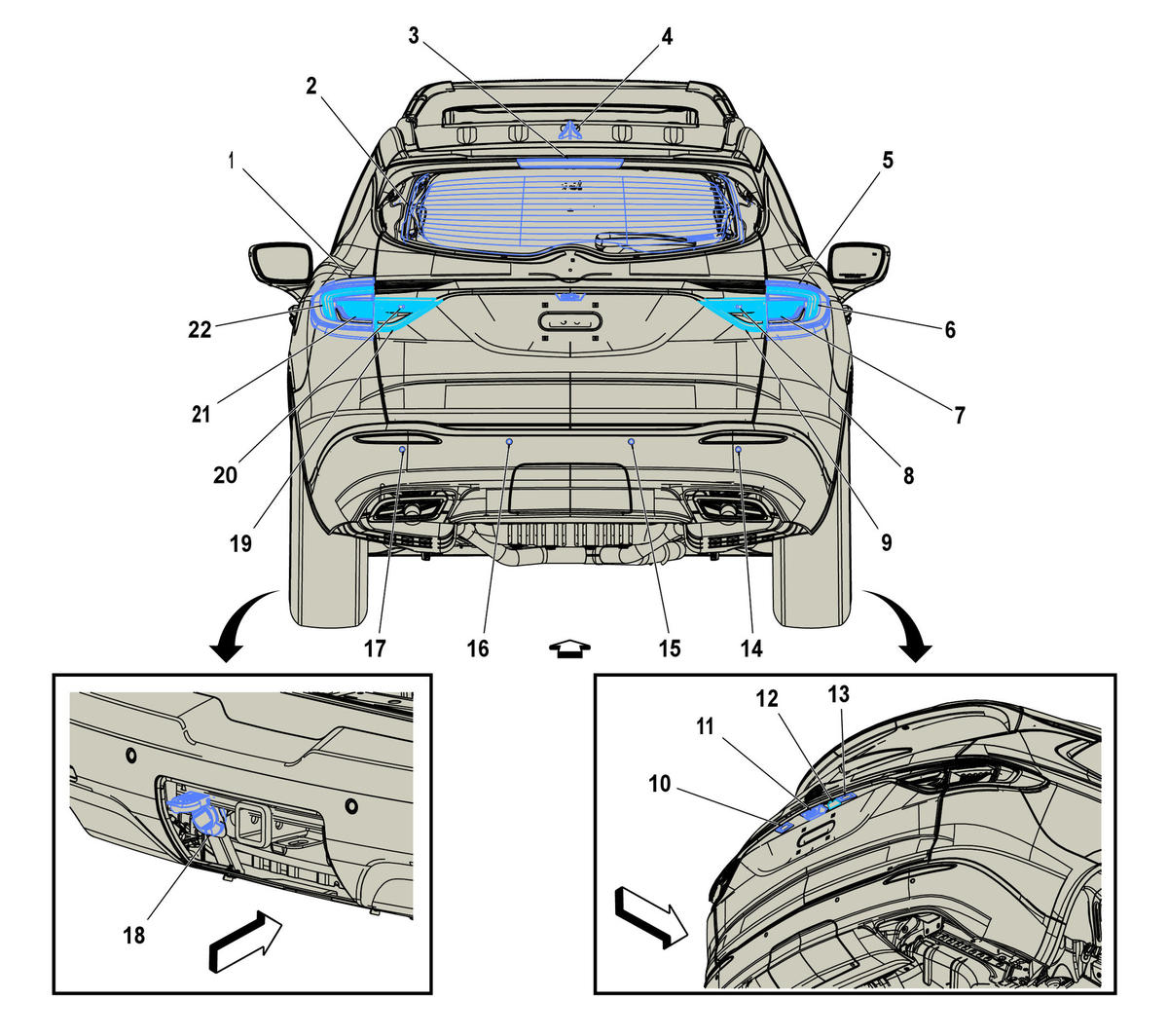

Rear of Vehicle Components
Rear of Vehicle Components
| Components |
|---|
| 1. E5AK Tail Lamp - Left Outer E5AK Tail Lamp - Left Outer |
| 2. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 , or E18 Rear Defogger Grid X2 . |
| 3. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 4. T2RR Antenna - Roof Rear T2RR Antenna - Roof Rear X1 , or T2RR Antenna - Roof Rear X2 . |
| 5. E5AL Tail Lamp - Right Outer E5AL Tail Lamp - Right Outer |
| 6. E4RR Turn Signal Lamp - Right Rear |
| 7. E5AN Stop/Turn Signal Lamp - Right |
| 8. E5B Backup Lamp - Right |
| 9. E5H Tail Lamp - Right Inner E5H Tail Lamp - Right Inner (-1SP) , or E5H Tail Lamp - Right Inner (1SP) . |
| 10. E7L License Plate Lamp - Left E7L License Plate Lamp - Left (-DRZ) |
| 11. B87 Rearview Camera B87 Rearview Camera (UV2) , or B87 Rearview Camera (UVB) . |
| 12. S46B Liftgate Unlatch Switch S46B Liftgate Unlatch Switch |
| 13. E7R License Plate Lamp - Right E7R License Plate Lamp - Right (-DRZ) , or E7R License Plate Lamp - Right (DRZ) . |
| 14. B306H Parking Assist Sensor - Rear Right Outer B306H Parking Assist Sensor - Rear Right Outer |
| 15. B306G Parking Assist Sensor - Rear Right Middle B306G Parking Assist Sensor - Rear Right Middle |
| 16. B306F Parking Assist Sensor - Rear Left Middle B306F Parking Assist Sensor - Rear Left Middle |
| 17. B306E Parking Assist Sensor - Rear Left Outer B306E Parking Assist Sensor - Rear Left Outer |
| 18. X88 Trailer Connector X88 Trailer Connector |
| 19. E5G Tail Lamp - Left Inner E5G Tail Lamp - Left Inner (-1SP) , or E5G Tail Lamp - Left Inner (1SP) . |
| 20. E5A Backup Lamp - Left |
| 21. E5AM Stop/Turn Signal Lamp - Left |
| 22. E4LR Turn Signal Lamp - Left Rear |
