E5AL Tail Lamp - Right Outer
 Courtesy of GENERAL MOTORS COMPANY
|

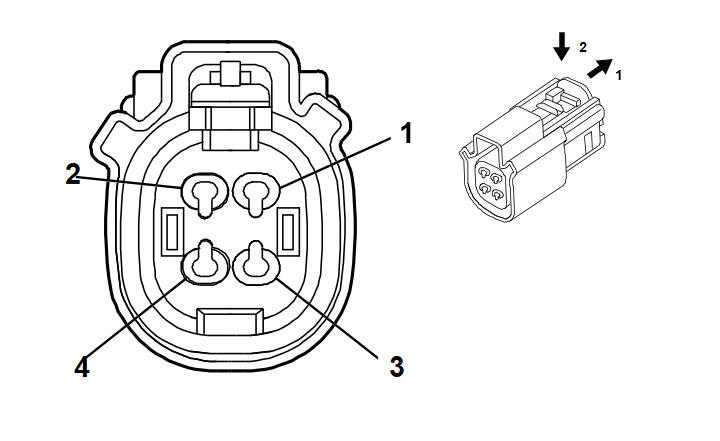

Connector Part Information
- Harness Type: Body
- OEM Connector: 33472-4007
- Service Connector: 19368970
- Description: 4-Way F 1.5 MX Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| II |
Not required |
J-35616-2A (GY) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU / VT |
1335 |
Right Rear Turn Signal Lamp Control 2 |
I |
1SP |
| 2 |
0.75 |
GY / BN |
309 |
Right Park Lamp Control |
II |
1SP |
| 3 |
0.5 |
YE / BK |
1967 |
Right Stop/Tail Lamp Feedback Signal |
I |
1SP |
| 4 |
0.75 |
BK / WH |
151 |
Signal Ground |
II |
1SP |
