Center Pillar Lower Trim Panel Replacement

Preliminary Procedures

1. Center Pillar Upper Trim Panel Replacement
2. Front Side Door Sill Garnish Molding Replacement
3. Rear Side Door Sill Garnish Molding Replacement
4. Remove the driver or passenger seat belt anchor plate tensioner cover and fastener. Front Seat Belt Retractor Replacement
5. Move the seat to the full forward position.

Procedure

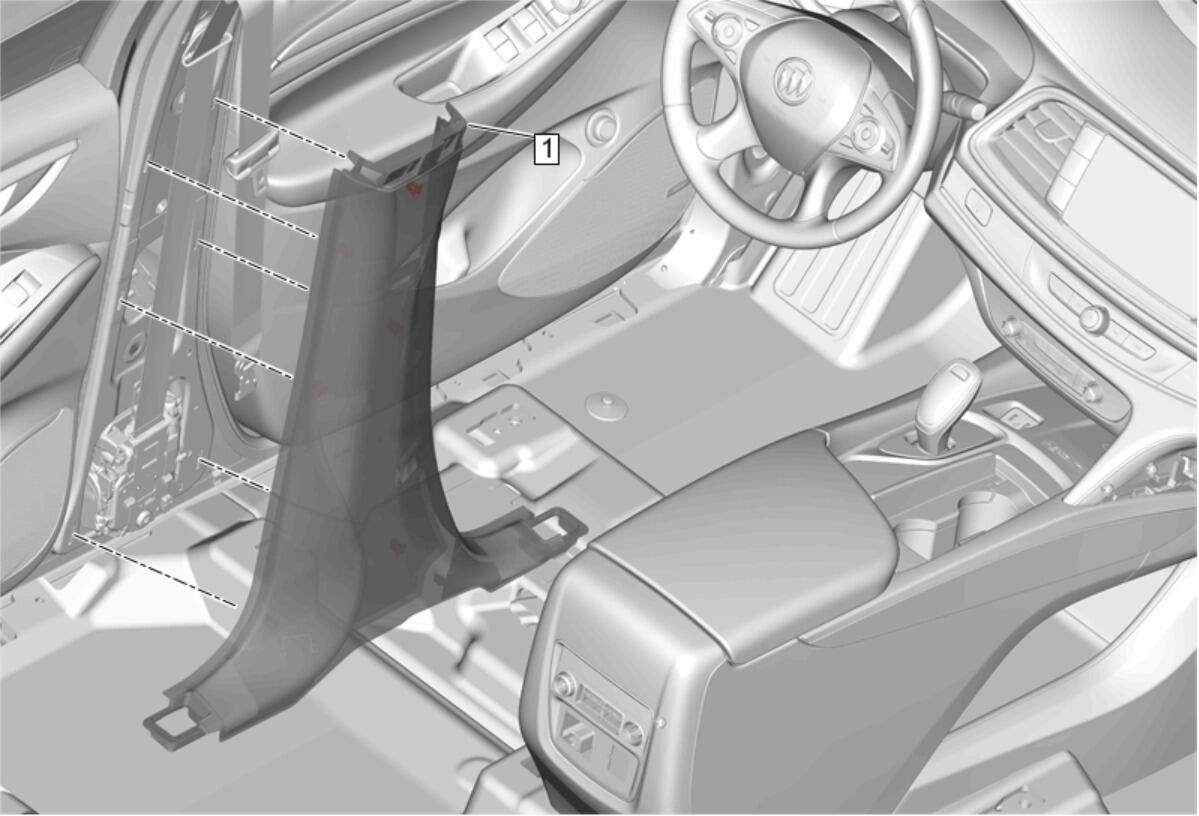

1. Pull the trim panel toward the inside of the vehicle to disengage the retainers.
2. Ensure the seat belt webbing does not become trapped during installation.
