Center Pillar Upper Trim Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

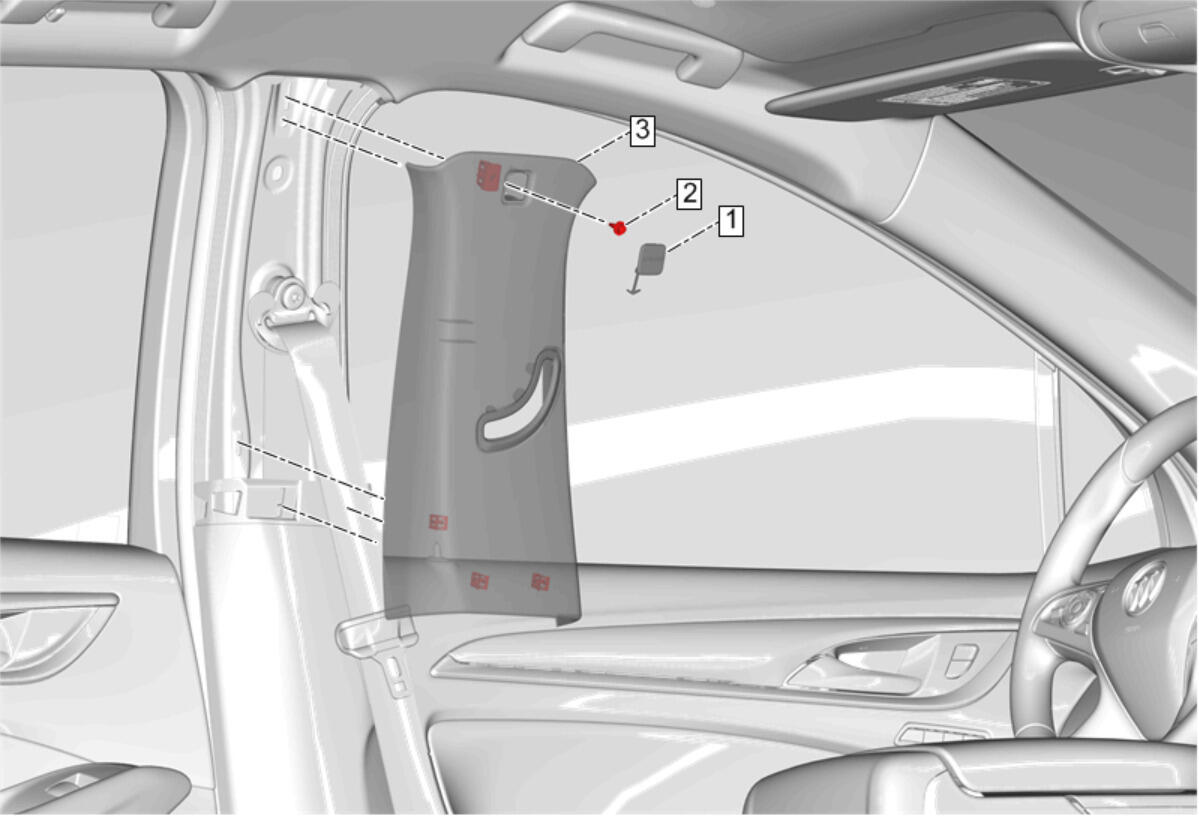

Callout	Component Name
Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1	Center Pillar Upper Trim Panel Bolt Cap
2	Center Pillar Upper Garnish Molding Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb/in)
3	Center Pillar Upper Trim Panel Procedure Pull the trim panel toward the inside of the vehicle to disengage the retainers. When replacing the center pillar upper trim panel, feed the seat belt through the panel. Enable the SIR System. SIR Disabling and Enabling
