Installation Procedure

With the aid of an assistant, position the instrument panel tie bar assembly into the vehicle.
Install the instrument panel wiring harness to the position noted in the removal procedure.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

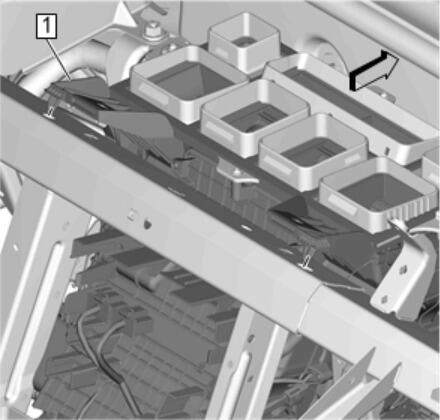

Seat the HVAC module tabs (1) into the tie bar.
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Evaporator and Blower Module Bolt (1) - Install and tighten [ 4x ] 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

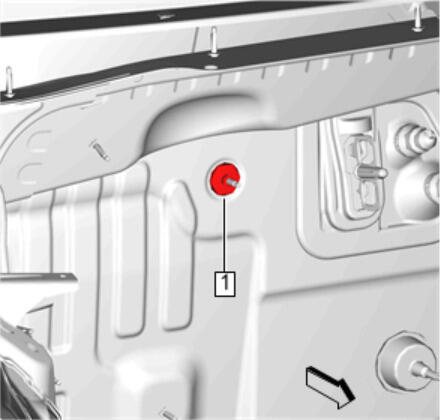

Heater and Air Conditioning Evaporator and Blower Module Nut (1) @ Cowl Panel - Tighten 9 N.m (80 lb/in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Install and tighten [ 2x ] 22 N.m (16 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Install the left and right front side door (1). Front Side Door Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar Bolt (1) - Install and tighten 22 N.m (16 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Windshield Wiper Transmission (2) - Install - Windshield Wiper Transmission Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Bolt (1) - Install and tighten [ 2x ] 15 N.m (11 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Bolt (1) - Install and tighten 15 N.m (11 lb-ft)
Courtesy of GENERAL MOTORS COMPANY

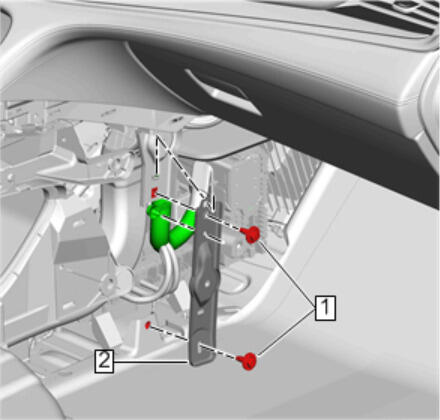

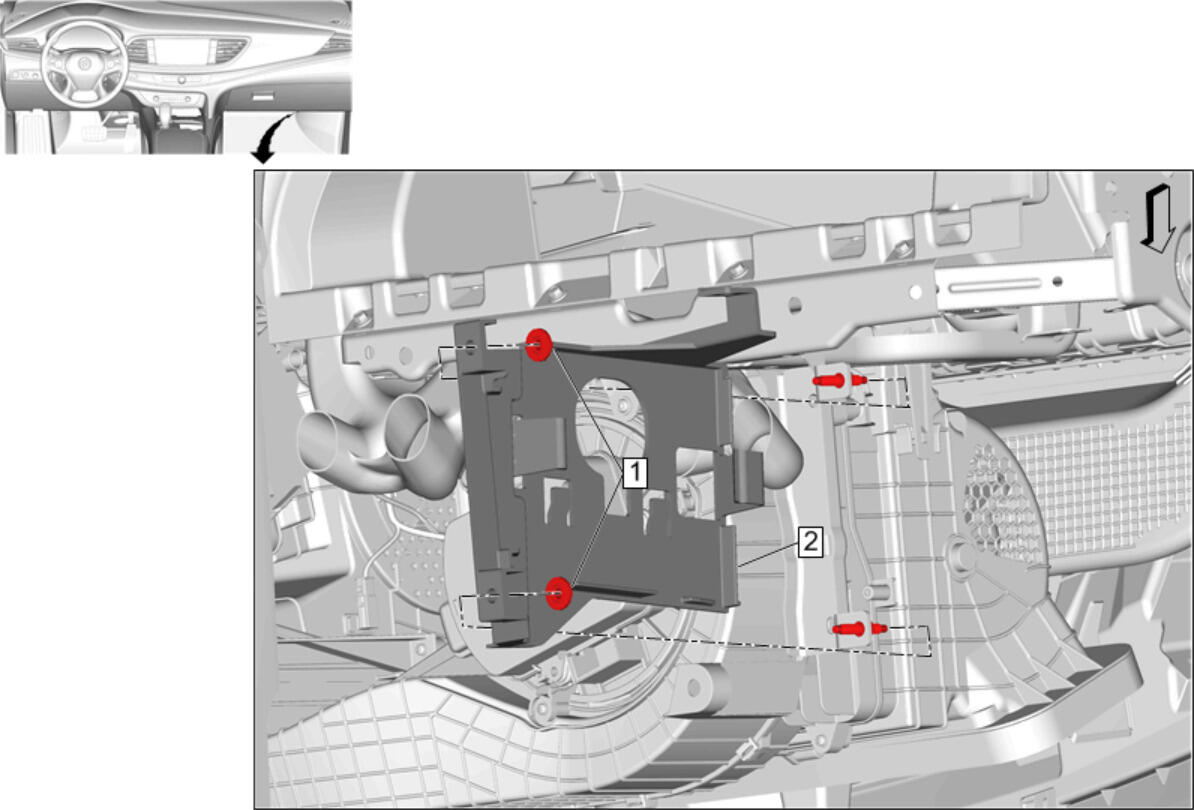

Human Machine Interface Control Module Bracket (2) - Install - Human-Machine Interface Control Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Radio Bracket (3) - Install - Radio Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Human Machine Interface Control Module Bypass Module Bracket (2) - Install - Human-Machine Interface Control Module Bypass Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Right Side (2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
Communication Interface Module Bracket - Install - Communication Interface Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Install the left and right instrument panel tie bar brace (2). Instrument Panel Tie Bar Brace Replacement
Courtesy of GENERAL MOTORS COMPANY

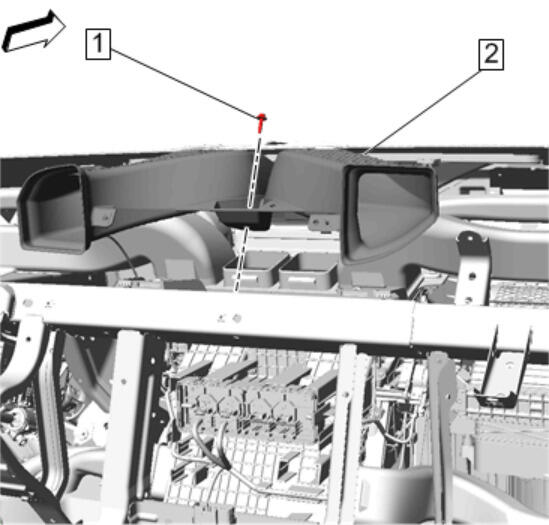

Instrument Panel Air Outlet Duct (2) - Install - Instrument Panel Air Outlet Duct Replacement (Center)
Courtesy of GENERAL MOTORS COMPANY

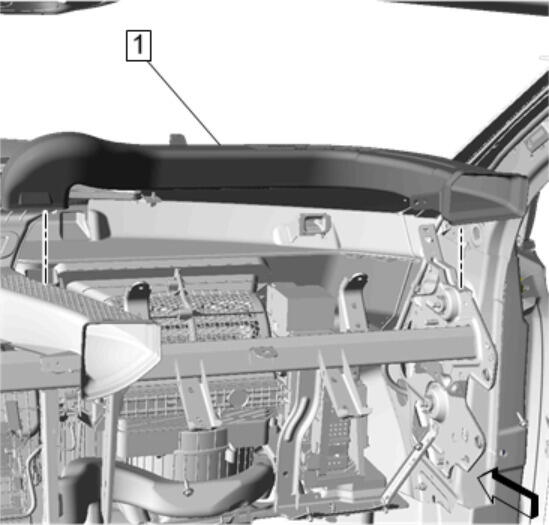

Instrument Panel Outer Air Outlet Duct - Left Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

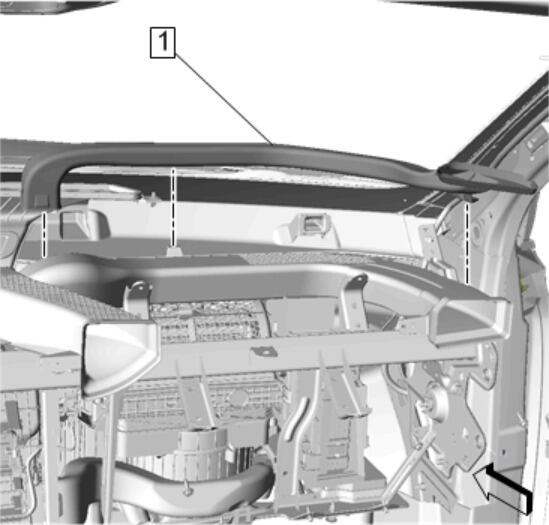

Side Window Defogger Outlet Duct - Left Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

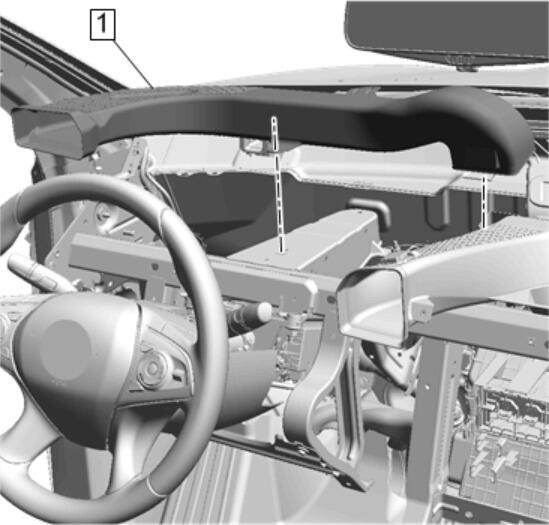

Instrument Panel Outer Air Outlet Duct - Right Side (1) - Install - Instrument Panel Outer Air Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

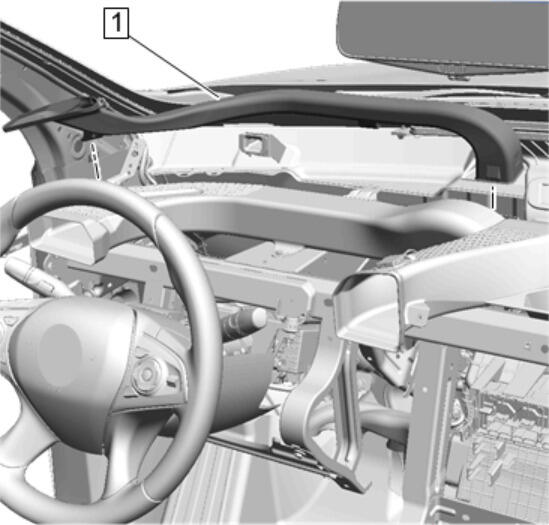

Side Window Defogger Outlet Duct - Right Side (1) - Install - Side Window Defogger Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

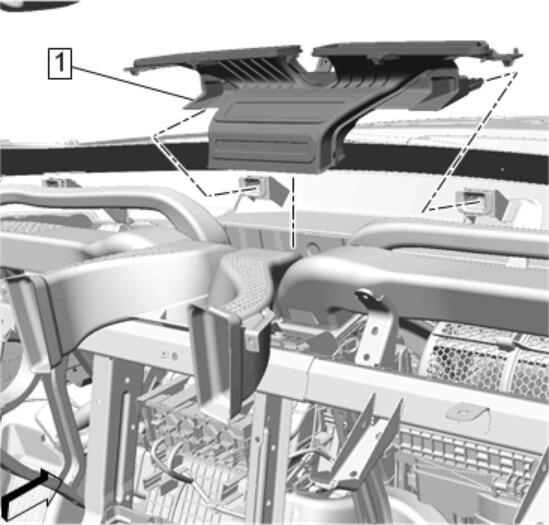

Windshield Defroster Outlet Duct (1) - Install - Windshield Defroster Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

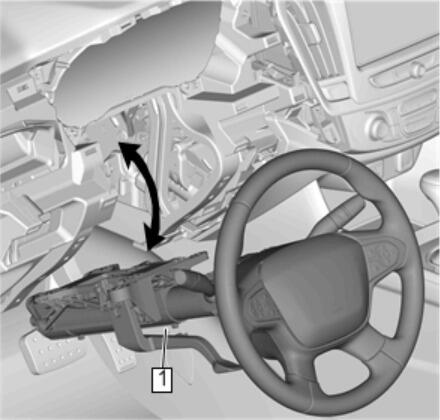

Steering Column (1) - Install - Steering Column Replacement (N38) , or Steering Column Replacement (N37)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Assembly (1) - Install - Instrument Panel Assembly Replacement
