Windshield Wiper Transmission Replacement

Courtesy of GENERAL MOTORS COMPANY

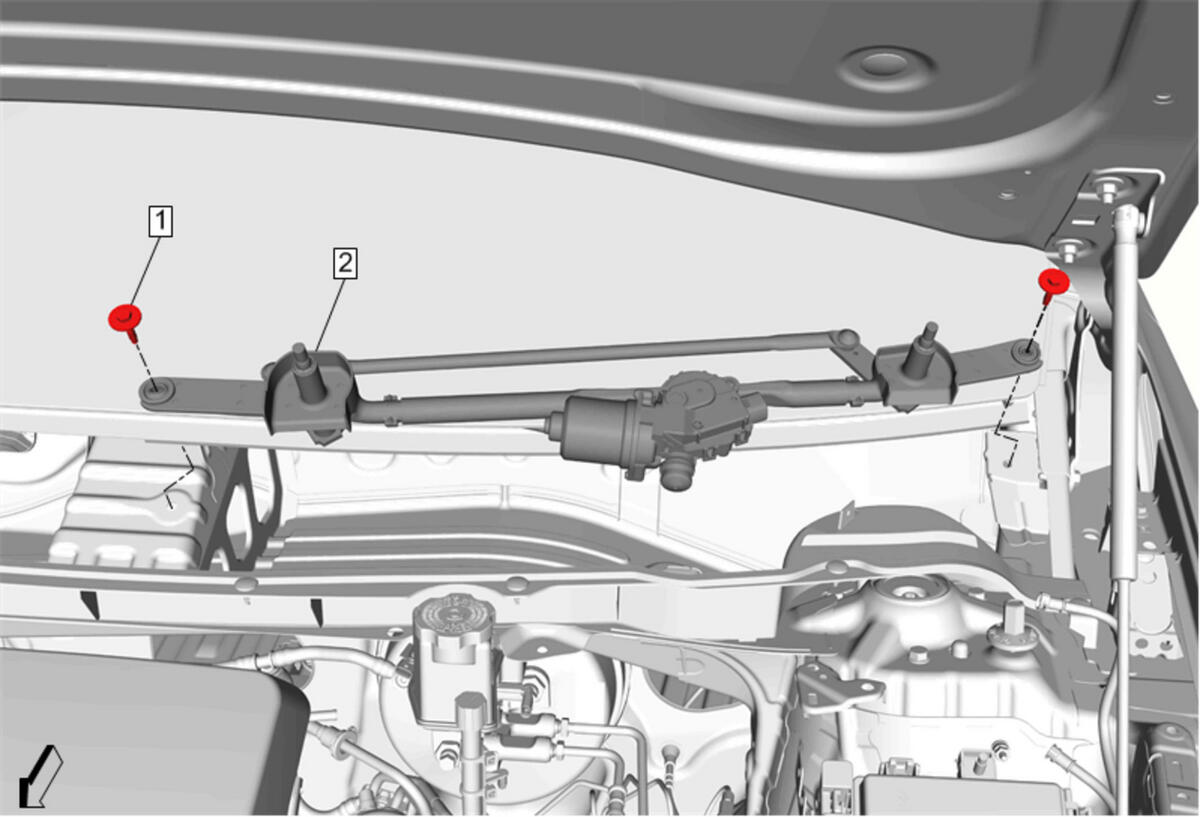

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel Replacement
1	Windshield Wiper Transmission Bolt [ 2x ] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb/in)
2	Windshield Wiper Transmission Procedure Disconnect the electrical connector. Remove the wiper transmission from the plenum brackets. Transfer components as necessary.

Callout

Component Name

Windshield Wiper Transmission Bolt [ 2x ]

CAUTION:

Tighten
8 N.m (71 lb/in)

Windshield Wiper Transmission

Procedure
