Front End Upper Tie Bar Replacement

Courtesy of GENERAL MOTORS COMPANY

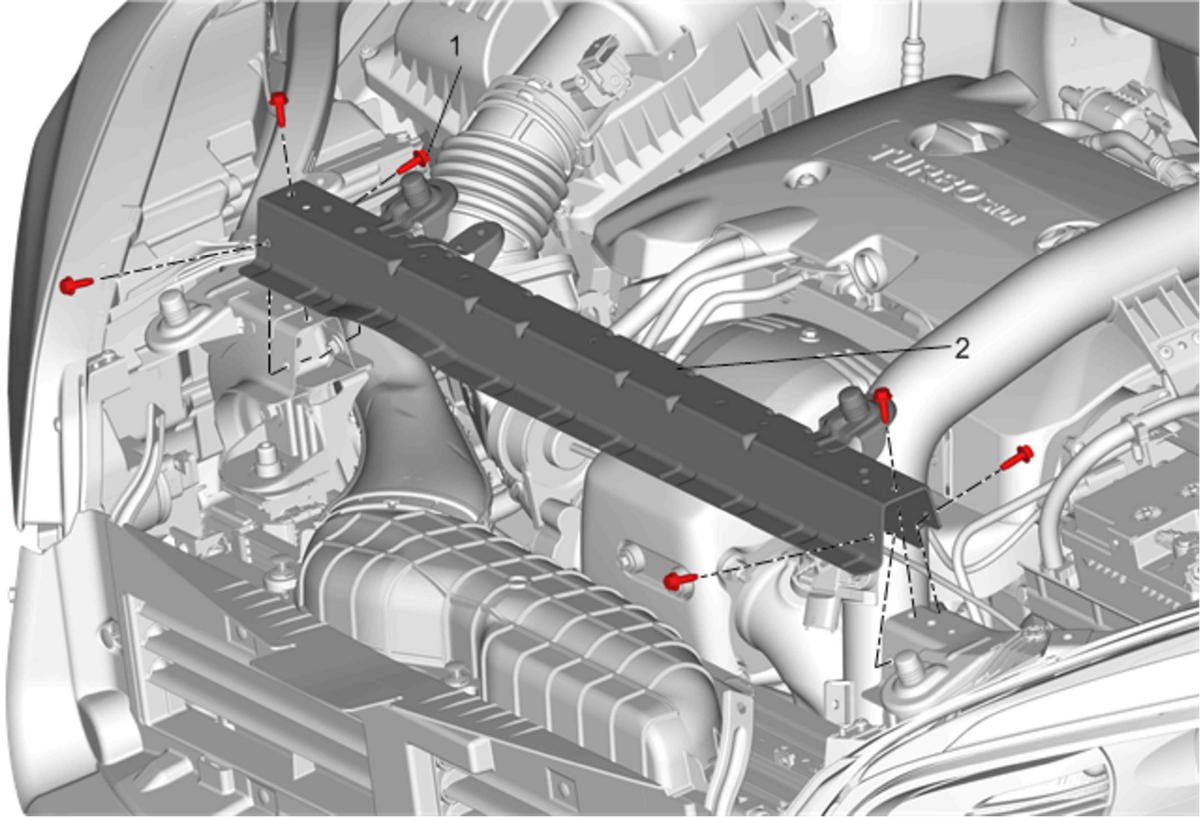

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Center Support Replacement Hood Primary and Secondary Latch Replacement Disconnect the electrical harness from the front end upper tie upper bar support.
1	Front End Upper Tie Bar Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front End Upper Tie Bar Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front End Upper Tie Bar Bolt [6x]

CAUTION:

Tighten
9 N.m (80 lb in)

Front End Upper Tie Bar
Procedure
Transfer components as necessary.
