Hood Primary and Secondary Latch Replacement

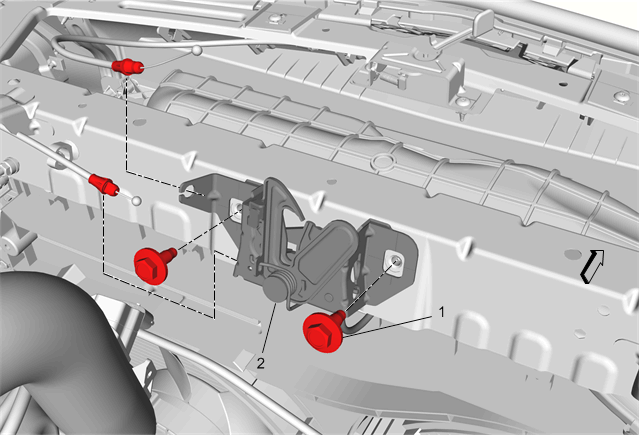

GM3814528Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Compartment Front Sight Shield Replacement
1 Hood Primary and Secondary Latch Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Hood Primary and Secondary Latch

Procedure

  1. Disconnect the release cable from the hood primary latch.
  2. Disconnect the hood secondary latch release cable from the hood primary and secondary latch.
  3. Align the hood primary and secondary latch if necessary.
