Front End Lower Tie Bar Replacement

Courtesy of GENERAL MOTORS COMPANY

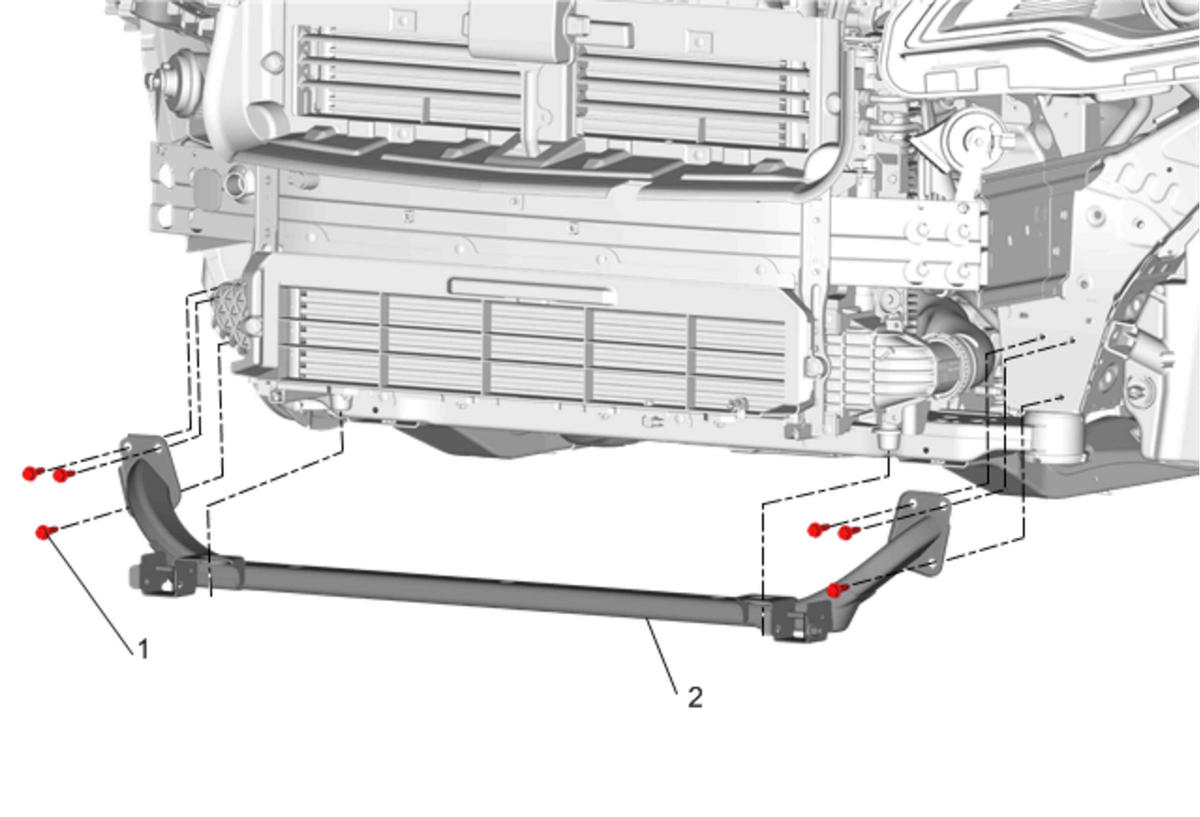

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Front Cradle Mount Bolt Bracket Replacement Support the radiator and condenser assembly.
1	Front End Lower Tie Bar Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Front End Lower Tie Bar

Callout

Component Name

Preliminary Procedures

Front End Lower Tie Bar Bolt [6x]

CAUTION:

Tighten
22 N.m (16 lb ft)

Front End Lower Tie Bar
