Front Cradle Mount Bolt Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

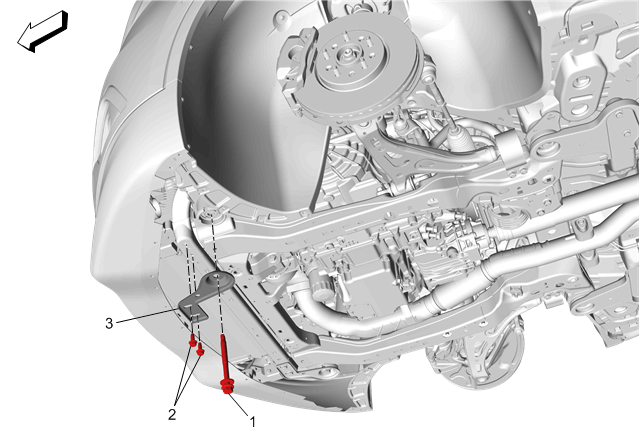

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody front air deflector. Refer to Underbody Front Air Deflector Replacement .
1	Front Cradle Mount Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 160 N.m (118 lb ft)
2	Front Cradle Mount Bracket Fasteners (Qty: 2) Tighten 58 N.m (43 lb ft)
3	Front Cradle Mount Bracket
