Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Accelerator Pedal with Position Sensor (1) - Install - Accelerator Pedal with Position Sensor Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Retainer (1) - Install NEW

NOTE:

Align the power brake booster pushrod with the brake pedal retainer.

Brake Pedal Assembly - Install
Position the brake and accelerator pedal assembly and secure the wire harness retainer.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

Brake Pedal Bracket Bolt(1) - Install and tighten[2x]15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Bracket Bolt(1) - Install and tighten 15 N.m (11 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Brake Pedal Retainer (1) Install
Brake Pedal(2) - Secure
Accelerator Pedal Position Sensor Electrical Connector - Connect
Courtesy of GENERAL MOTORS COMPANY

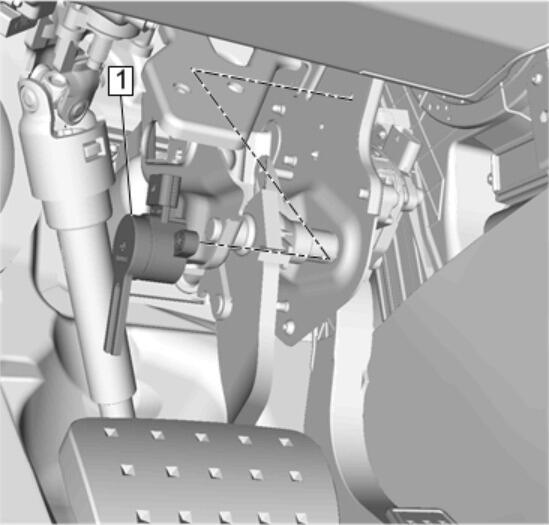

Brake Pedal Position Sensor(1) - Install - Brake Pedal Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

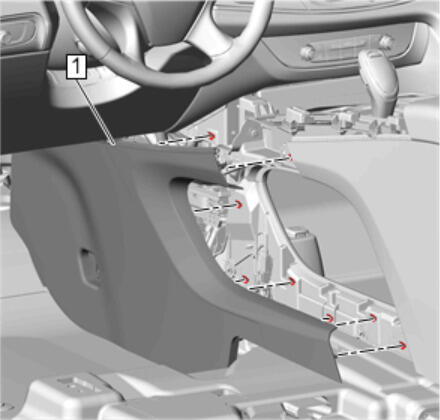

Front Floor Console Extension Panel - Left Side(1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

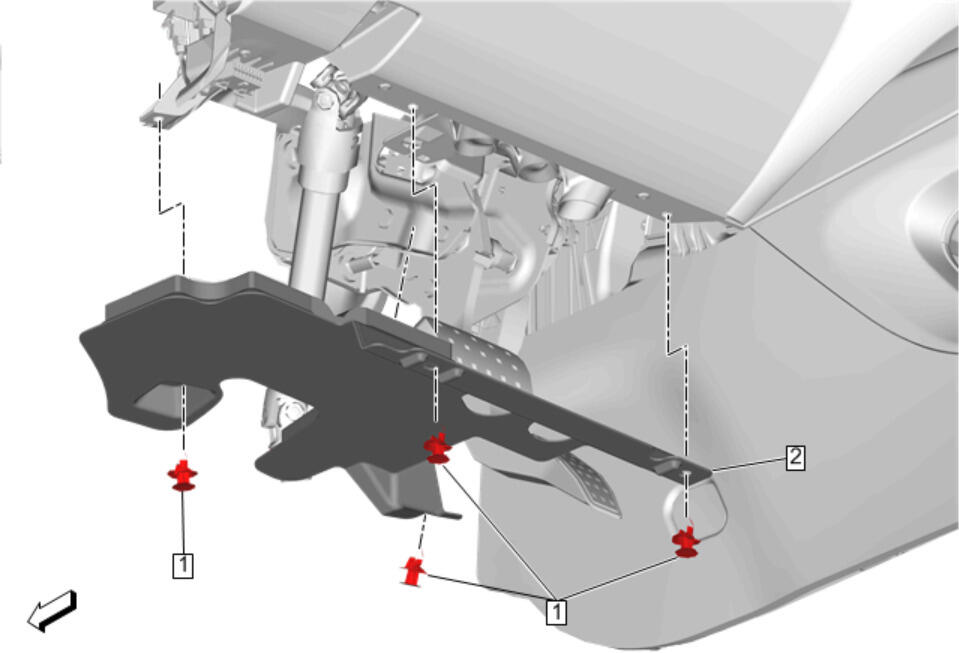

Instrument Panel Lower Trim Panel Insulator - Left Side(2) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Bolt(1) - Install and tighten[2x]22 N.m (16 lb ft)
Reposition and install the radiator surge tank. Radiator Surge Tank Replacement
