Installation Procedure

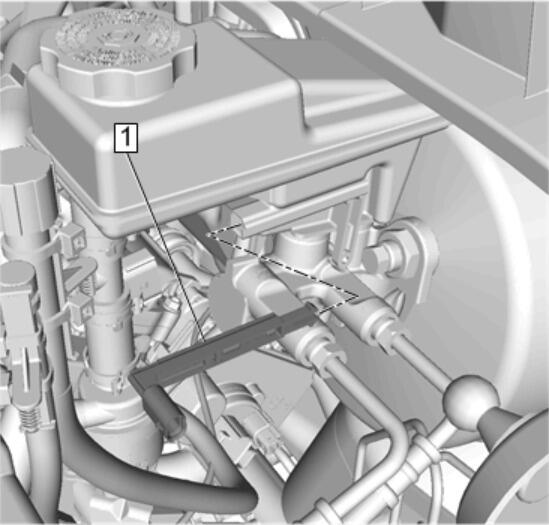

  1. GM4292083Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the locking tabs on the switch fully engage the master cylinder reservoir.

    Brake Fluid Level Indicator Switch(1) - Install

  2. Brake Fluid Level Indicator Switch Electrical Connector - Connect
  3. Reposition and install the radiator surge tank. - Radiator Surge Tank Replacement
