Front Compartment Splash Shield Replacement - Left Side
FRONT COMPARTMENT SPLASH SHIELD REPLACEMENT - LEFT SIDE

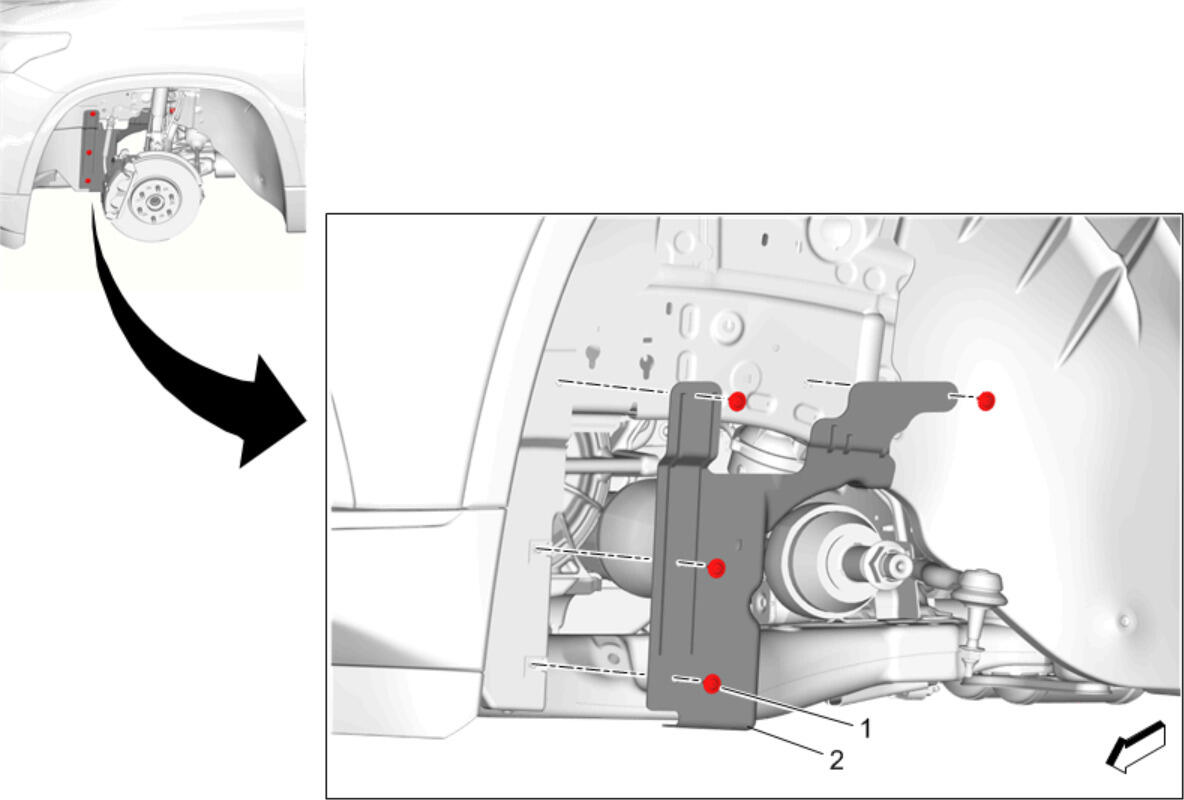

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Tire and Wheel Removal and Installation |
|
| 1 | Front Compartment Splash Shield Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Compartment Splash Shield - Left Procedure Install the tire and wheel assembly. Tire and Wheel Removal and Installation |
