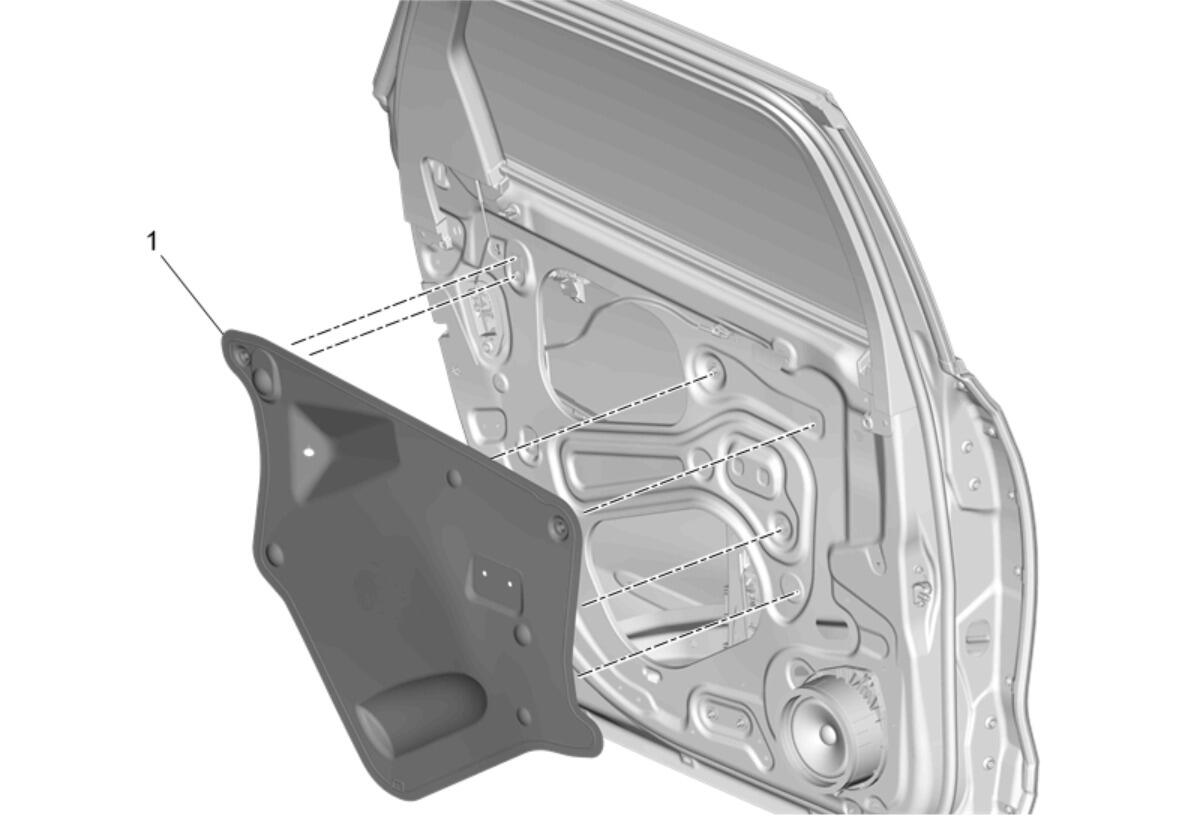

Rear Side Door Water Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Trim Replacement Rear Side Door Pull Handle Bracket Replacement
1	Rear Side Door Water Deflector Procedure Reposition the rear side door locking rod, as necessary. Route rear side door inside handle cable through hole in deflector assembly while removing it from the door. NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

Preliminary Procedures

Rear Side Door Water Deflector

Procedure

Reposition the rear side door locking rod, as necessary.
Route rear side door inside handle cable through hole in deflector assembly while removing it from the door.

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
