Rear Side Door Pull Handle Bracket Replacement

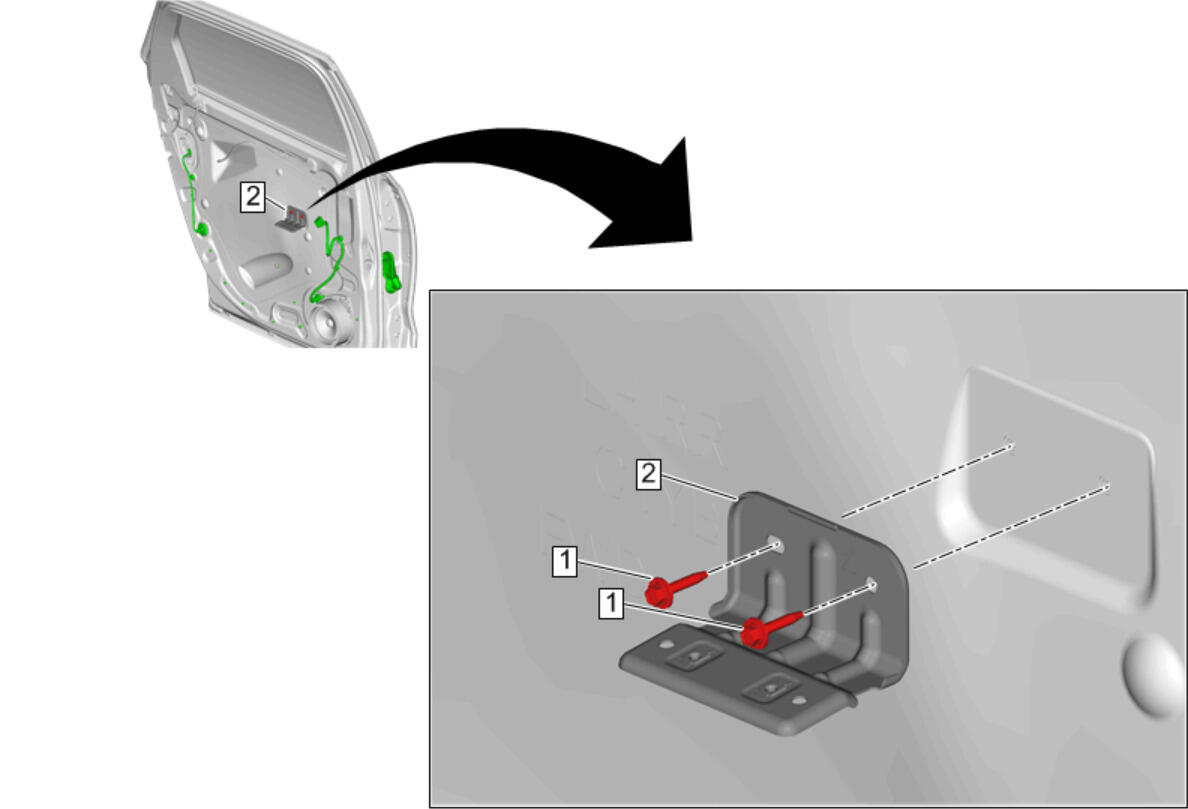

Fig 1: Rear Side Door Pull Handle Bracket Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement
1	Rear Side Door Armrest Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Side Door Pull Handle Bracket Procedure  Reposition water deflector, as necessary.
