Headlamp LED Driver Module Replacement

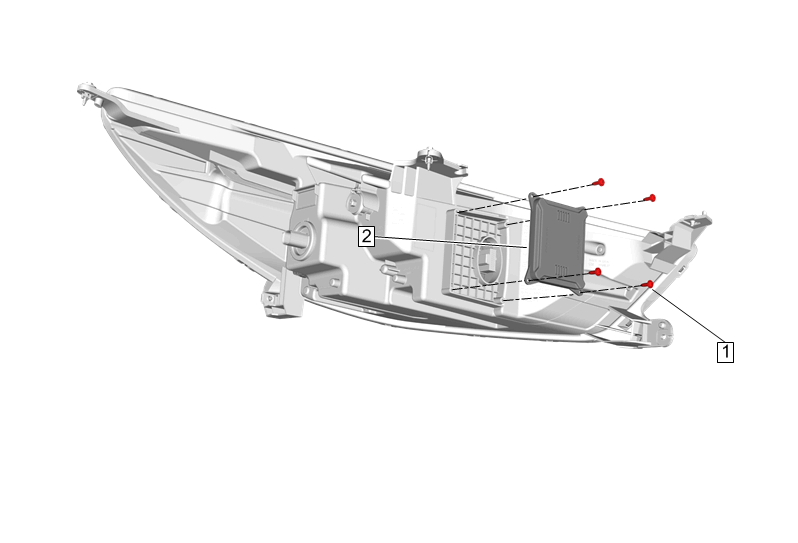

Fig 1: Headlamp LED Driver Module Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
Preliminary Procedure  Front Headlamp Replacement
1	Headlamp LED Driver Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Headlamp LED Driver Module Procedure  Disconnect the electrical connector.
