Front Headlamp Replacement

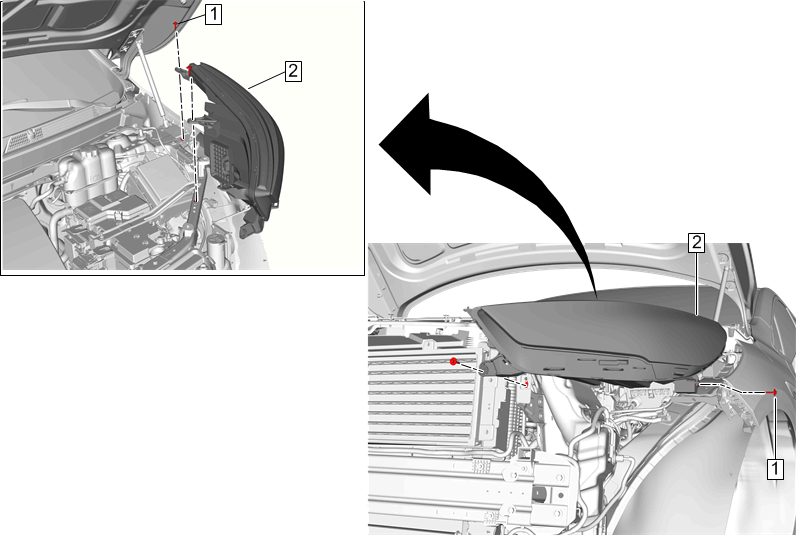

Fig 1: Front Headlamp Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement NOTE: Use care not to damage the fender when replacing the headlamp.
1	Headlamp Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Disconnect the electrical connector. After installation, aim the front headlamps. Front Headlamp Aiming
