Backup Bulb Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement |
|

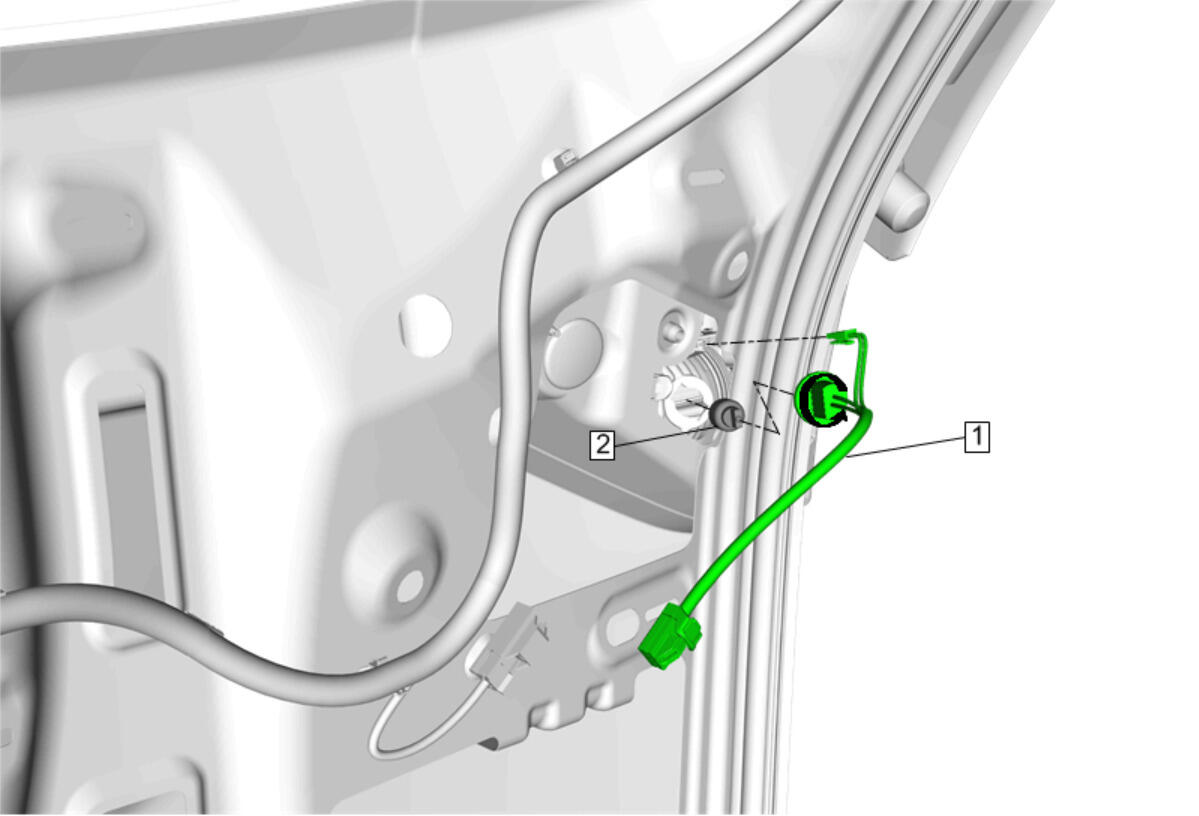

| 1 | Backup Lamp Bulb Socket Procedure Rotate the bulb socket a quarter turn counter clockwise and remove. |
| 2 | Backup Bulb Procedure Pull the bulb straight from the lamp socket. |
