Liftgate Lower Trim Finish Panel Replacement

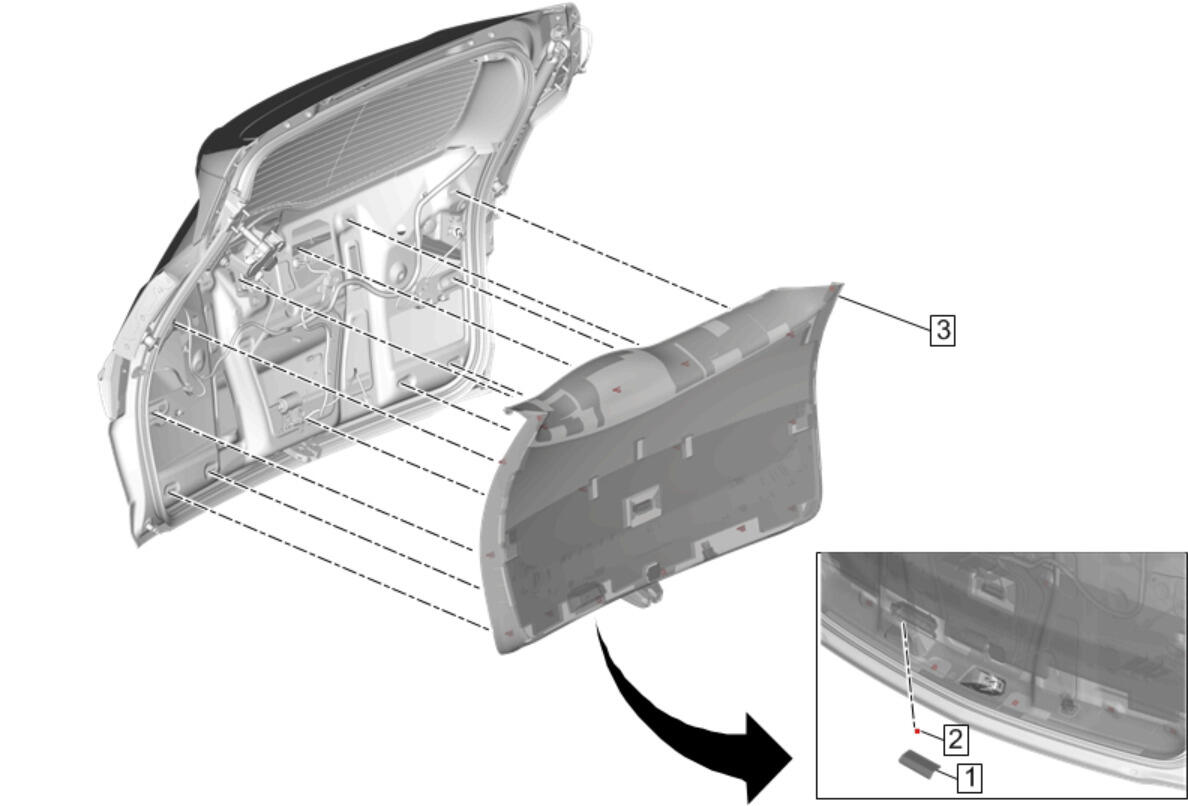

Fig 1: Liftgate Lower Trim Finish Panel Components Location With Torque Specification

Courtesy of GENERAL MOTORS COMPANY

TIGHTENING TORQUE SPECIFICATIONS

Callout	Component Name
1	Liftgate Lower Trim Finish Panel Access Hole Cover Procedure Use a flat bladed plastic trim tool.
2	Liftgate Lower Trim Finish Panel Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Liftgate Lower Trim Finish Panel Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.

Callout

Component Name

Liftgate Lower Trim Finish Panel Access Hole Cover
Procedure
Use a flat bladed plastic trim tool.

Liftgate Lower Trim Finish Panel Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Liftgate Lower Trim Finish Panel

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Disconnect the electrical connector, if equipped.
