Hood Hinge Replacement

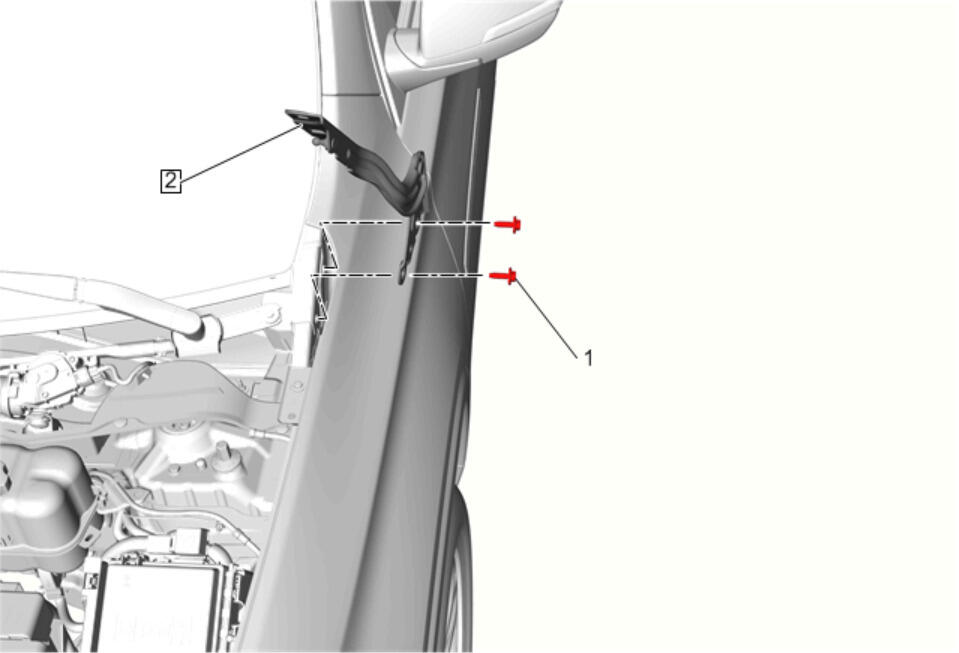

GM4709105Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Hood Replacement
  2. Air Inlet Grille Panel Replacement
1 Hood Hinge Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
32 N.m (24 lb ft)
2 Hood Hinge
