Rear Parking Assist Alarm Sensor Replacement

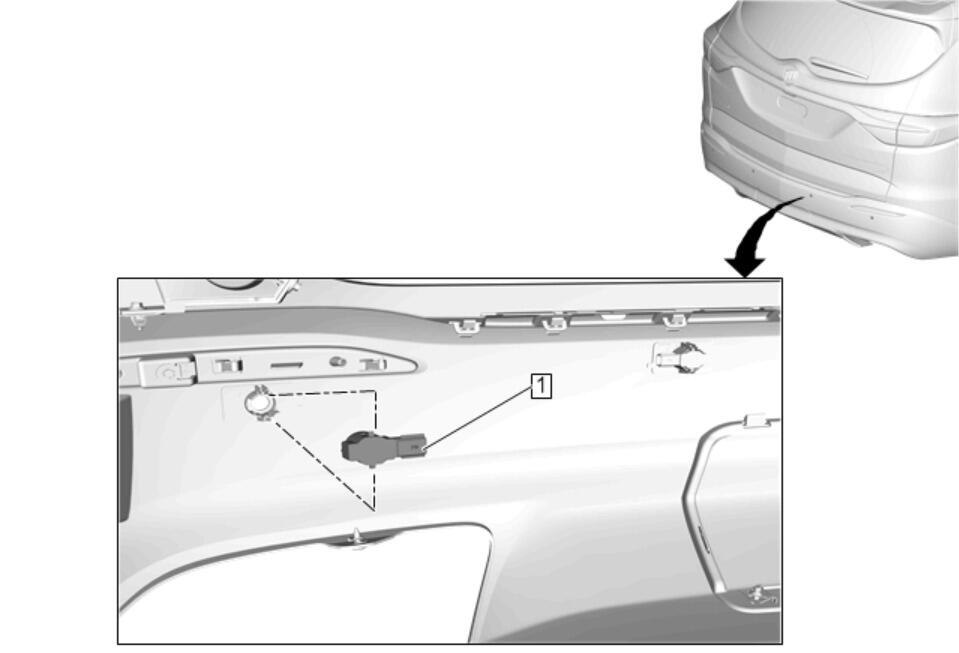

GM4819072

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Energy Absorber Replacement

1

Rear Parking Assist Alarm Sensor

Procedure

Disconnect the electrical connector.
Release the locking tab from the rear parking assist alarm sensor bracket.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative.
