Valve Rocker Arm Oil Control Valve Replacement (Bank 1)
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

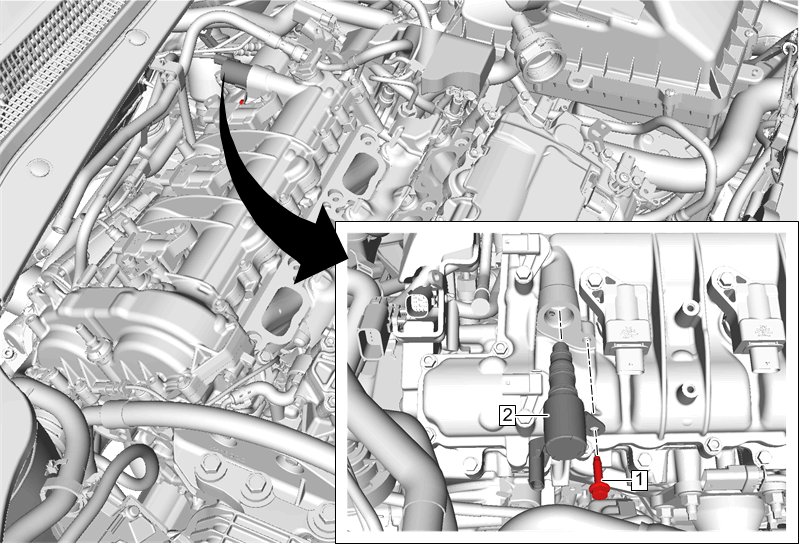

| Callout | Component Name |
|---|---|
| Preliminary Procedure Camshaft Housing Cover Insulator Replacement - Right Side |
|
| 2 | Valve Rocker Arm Oil Control Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Valve Rocker Arm Oil Control Valve Procedure
NOTE:
Lubricate the O-rings with engine oil. Inspect the O-ring and replace if necessary. [3x] |
