Camshaft Housing Cover Insulator Replacement - Right Side

WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Replacement Disconnect electrical connectors and remove the engine harness from the camshaft housing cover insulator. Positive Crankcase Ventilation Tube @ Camshaft Cover - Disconnect - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Outlet Duct to Camshaft Covers) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Outlet Duct to PCV Oil Separator)

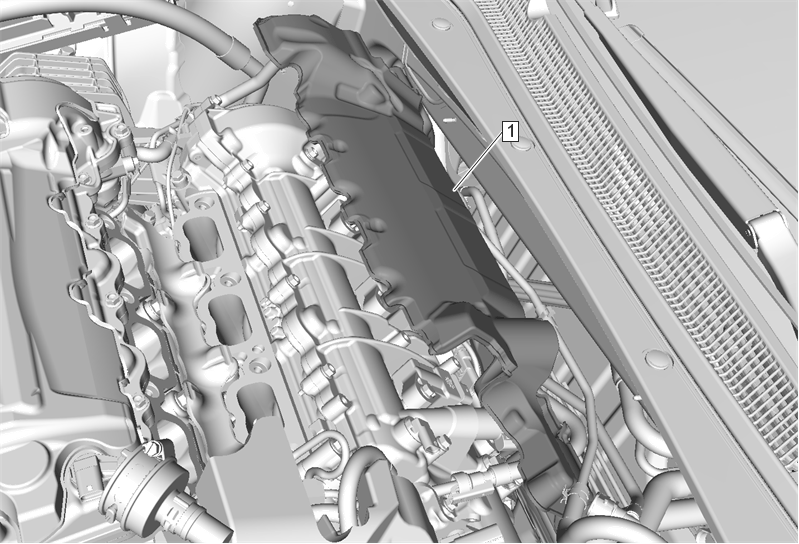

1	Camshaft Housing Cover Insulator WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

Callout

Component Name

Preliminary Procedures

Intake Manifold Replacement
Disconnect electrical connectors and remove the engine harness from the camshaft housing cover insulator.
Positive Crankcase Ventilation Tube @ Camshaft Cover - Disconnect - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Outlet Duct to Camshaft Covers) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Air Outlet Duct to PCV Oil Separator)

Camshaft Housing Cover Insulator

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
