Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Intake
WARNING: This page is about a different car, the 2020 Buick Regal and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

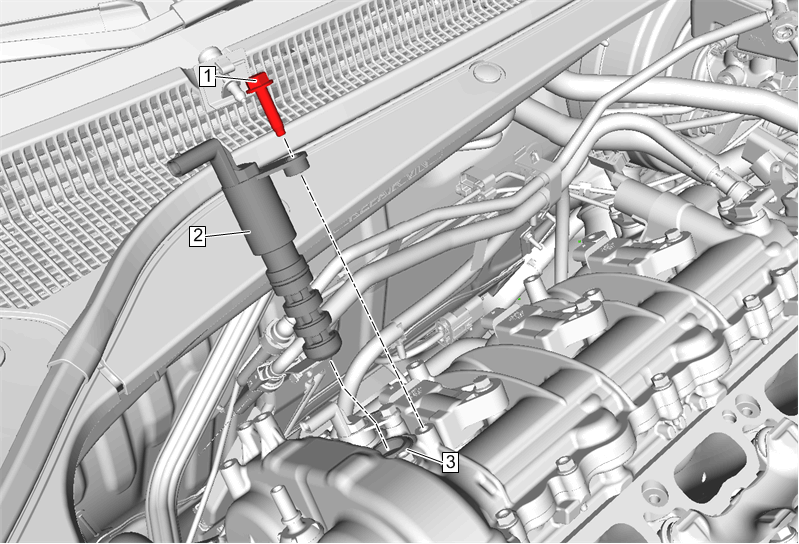

| Callout | Component Name |
|---|---|
| Preliminary Procedure Camshaft Housing Cover Insulator Replacement - Right Side |
|
| 1 | Camshaft Position Actuator Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Actuator Solenoid Valve Procedure Disconnect the electrical connector. |
| 3 | Camshaft Position Actuator Solenoid Valve Seal
NOTE:
Always install the camshaft position actuator solenoid valve seal supplied with the NEW camshaft position actuator solenoid valve. If reinstalling the valve, inspect the camshaft position actuator solenoid valve seal and replace as necessary. |
