Transmission Front Mount Replacement

Courtesy of GENERAL MOTORS COMPANY

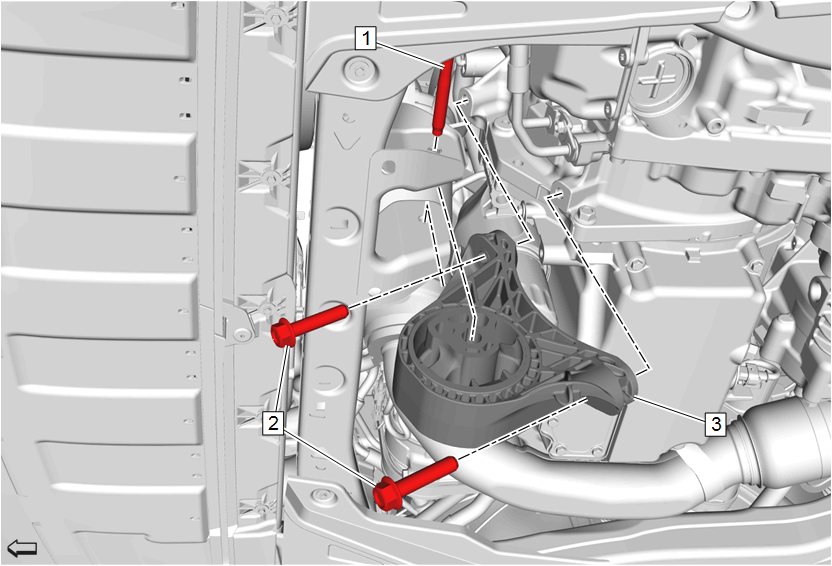

Callout	Component Name
Preliminary Procedure  Underbody Skid Shield Replacement
1	Transmission Front Mount Through Bolt CAUTION: Fastener Caution Tighten  100 N.m (74 lb ft)
2	Transmission Front Mount to Transmission Bolt [2x] Tighten  100 N.m (74 lb ft)
3	Transmission Front Mount
