Rear of Vehicle Harness Routing

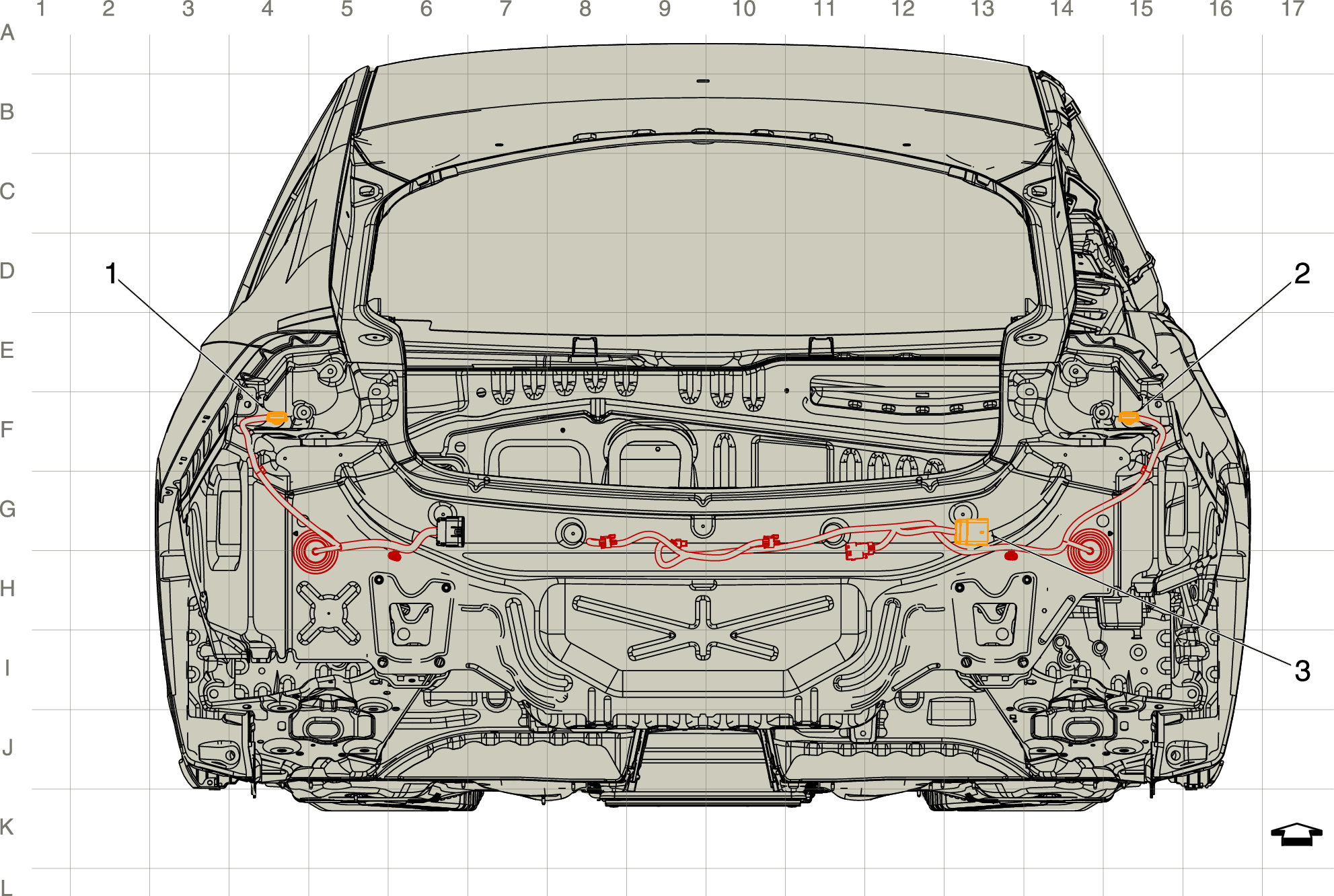

GM4822441Courtesy of GENERAL MOTORS COMPANY
Rear of Vehicle Harness Routing

Harness Name Callout
X410 Body Harness to Left Tail Lamp Harness X410 Body Harness to Left Tail Lamp Harness (HATCHBACK) , or X410 Body Harness to Left Tail Lamp Harness (WAGON) 1
X420 Body Harness to Right Tail Lamp Harness X420 Body Harness to Right Tail Lamp Harness 2
X404 Rear Fascia Harness to Body Harness X404 Rear Fascia Harness to Body Harness 3
