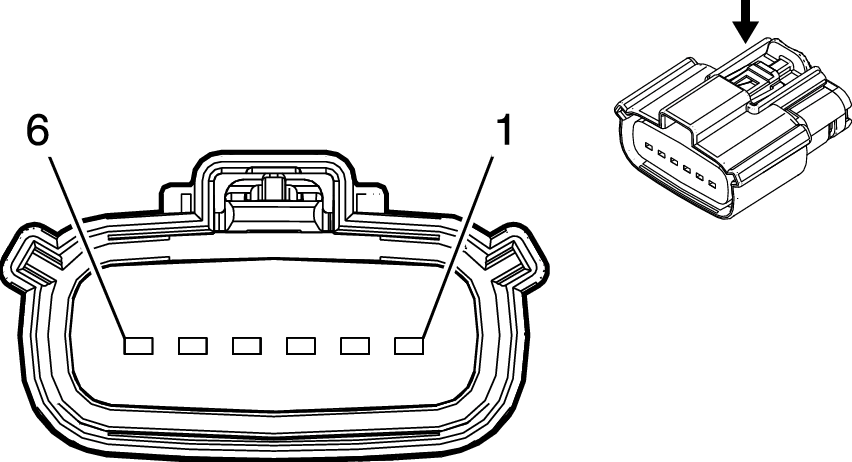

X410 Body Harness to Left Tail Lamp Harness (HATCHBACK)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33471-0606
- Service Connector: 19368640
- Description: 6-Way F 1.5 Series, Sealed (BK)
|
Connector Part Information
- Harness Type: Left Tail Lamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
VT/GY |
709 |
II |
T4L+LGX |
Left Park Lamp Control |
1 |
0.75 |
VT/GY |
709 |
III |
T4L+LGX |
| 2 |
0.75 |
GY/YE |
7542 |
II |
T4L+LGX |
Left Rear Stop Lamp Control |
2 |
0.75 |
GY/YE |
7542 |
III |
T4L+LGX |
| 3 |
0.75 |
GY/YE |
7542 |
II |
T4L+LGX |
Left Rear Stop Lamp Control |
3 |
0.75 |
GY/YE |
7542 |
III |
T4L+LGX |
| 4 |
0.75 |
BK |
2550 |
II |
T4L+LGX |
Ground 25 |
4 |
0.75 |
BK |
2550 |
III |
T4L+LGX |
| 5 |
0.5 |
YE/GY |
2948 |
I |
T4L+LGX |
Tail Lamp Animation Control Left |
5 |
0.5 |
YE/GY |
2948 |
III |
T4L+LGX |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
