Front Door Harnesses (-UQA)
Front Door Harnesses (-UQA)

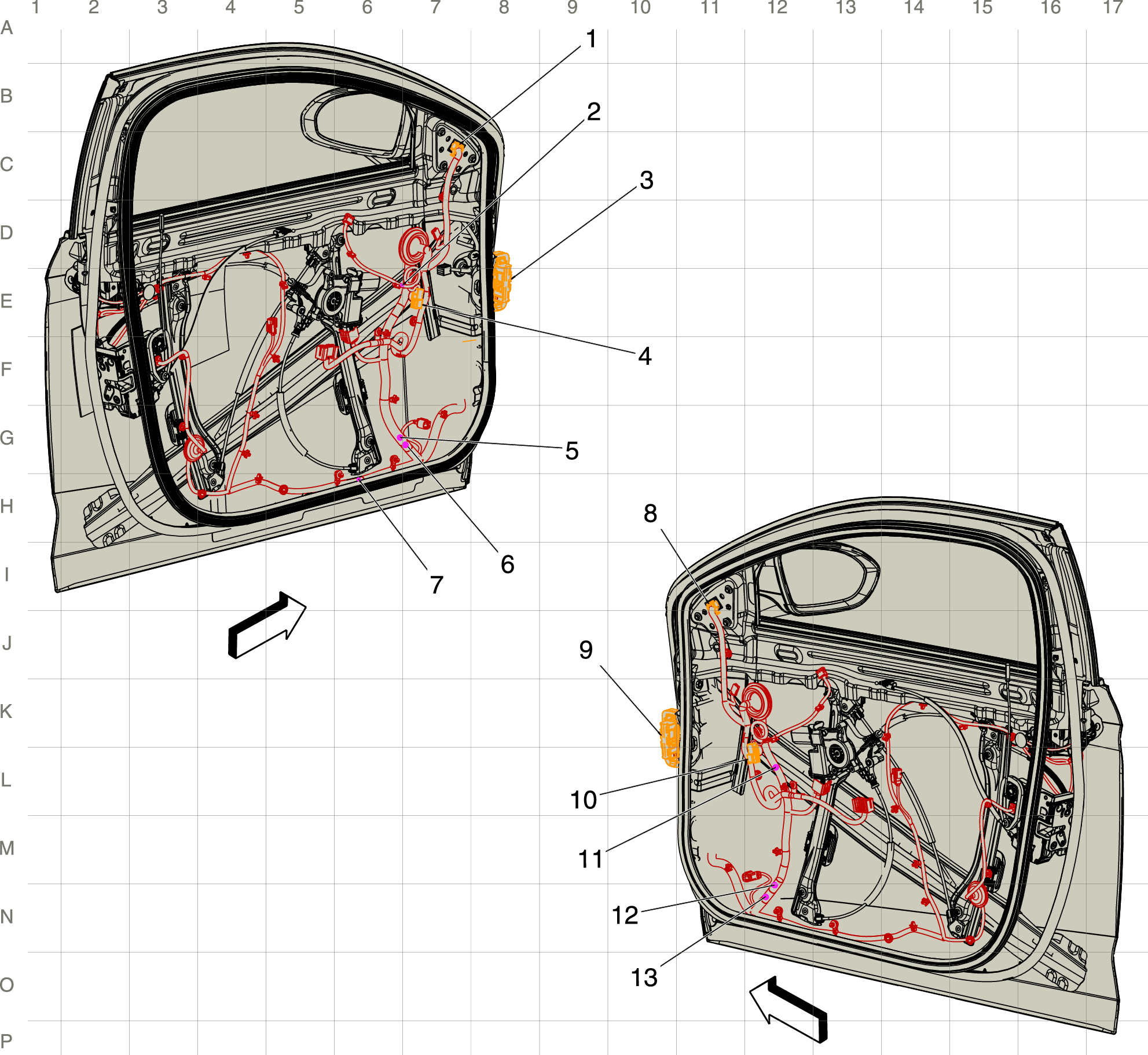

| Harness Name | Callout |
|---|---|
| X510 Driver Door Harness to Driver Outside Rearview Mirror Harness X510 Door Harness to Driver Outside Rearview Mirror Harness | 1 |
| J510 Driver Door Harness | 2 |
| X500 Driver Door Harness to Body Harness X500 Door Harness to Body Harness | 3 |
| X501 Driver Door Trim Harness to Driver Door Harness X501 Door Lock Harness to Door Harness | 4 |
| J506 Driver Door Harness | 5 |
| J507 Driver Door Harness | 6 |
| J500 Driver Door Harness | 7 |
| X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness X610 Passenger Door Harness to Passenger Outside Rearview Mirror Harness | 8 |
| X600 Passenger Door Harness to Body Harness X600 Passenger Door Harness to Body Harness | 9 |
| X601 Passenger Door Trim Harness to Passenger Door Harness X601 Passenger Door Trim Harness to Passenger Door Harness (C93) | 10 |
| J603 Passenger Door Harness | 11 |
| J606 Passenger Door Harness | 12 |
| J607 Passenger Door Harness | 13 |
