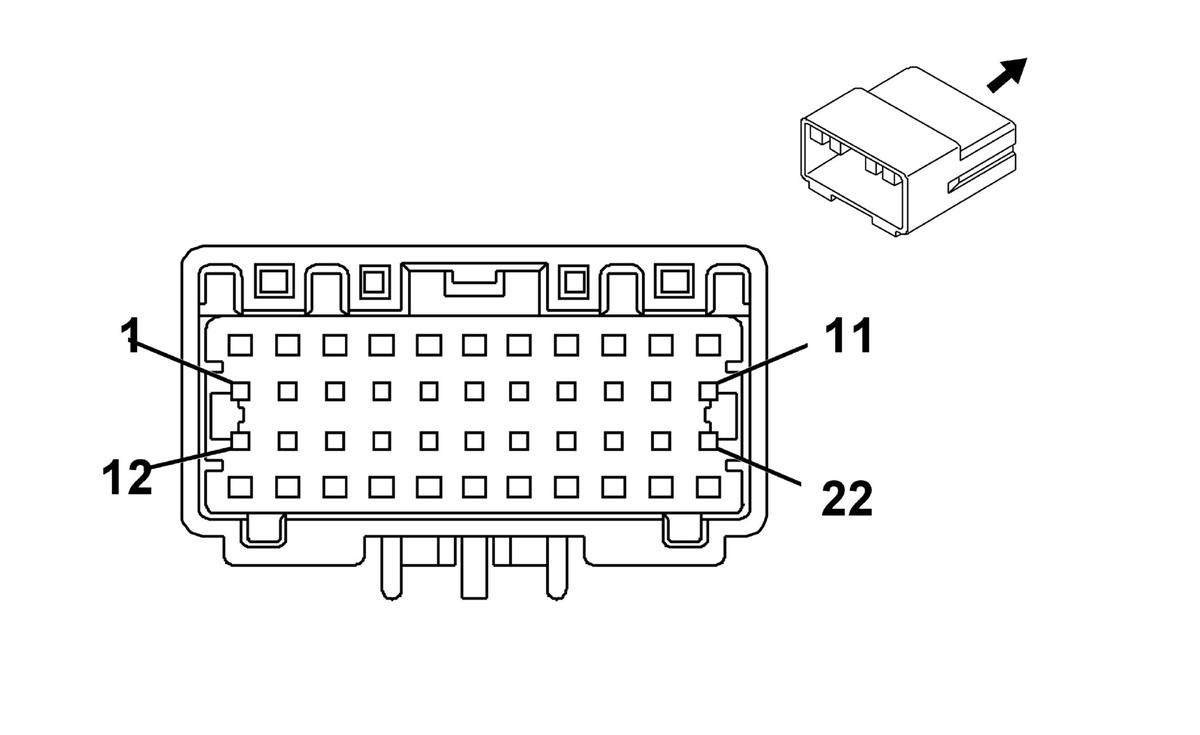

X510 Door Harness to Driver Outside Rearview Mirror Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Door
- OEM Connector: 33100834
- Service Connector: Service by Harness - See Part Catalog
- Description: 22-Way F 0.64 Series (BK)
|
Connector Part Information
- Harness Type: Driver Outside Rearview Mirror
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 22-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
- |
- |
Not Occupied |
1 |
- |
- |
- |
- |
- |
| 2 |
0.35 |
YE/WH |
1690 |
I |
- |
Mirror Dimming Signal |
2 |
0.35 |
YE/WH |
1690 |
II |
- |
| 3 |
0.35 |
BK/BN |
3393 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Low Reference |
3 |
0.35 |
BK/BN |
3393 |
II |
- |
| 4 |
- |
- |
- |
- |
- |
Not Occupied |
4 |
- |
- |
- |
- |
- |
| 5 |
0.35 |
BK |
850 |
I |
DXA/UKC |
Ground 8 |
5 |
0.35 |
BK |
850 |
II |
DXA/UKC |
| 6 |
- |
- |
- |
- |
- |
Not Occupied |
6 |
- |
- |
- |
- |
- |
| 7 |
0.35 |
WH/YE |
3395 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Left [-] Right [+] Signal |
7 |
0.35 |
WH/YE |
3395 |
II |
- |
| 8 |
0.35 |
BN/YE |
2267 |
I |
- |
Outside Rearview Mirror Heater Control |
8 |
0.35 |
BN/YE |
2267 |
II |
- |
| 9 |
0.35 |
VT/BU |
3390 |
I |
- |
Driver Outside Rearview Mirror Motor Up [+] Down [-] Control |
9 |
0.35 |
VT/BU |
3390 |
II |
- |
| 10 |
0.35 |
BN/BK |
3389 |
I |
- |
Driver Outside Rearview Mirror Motor Right [+] Left [-] Control |
10 |
0.35 |
BN/BK |
3389 |
II |
- |
| 11 |
0.35 |
BK |
850 |
I |
- |
Ground 8 |
11 |
0.35 |
BK |
850 |
II |
- |
| 12 |
0.35 |
YE/BN |
3391 |
I |
- |
Driver Outside Rearview Mirror Motor Common Control |
12 |
0.35 |
YE/BN |
3391 |
II |
- |
| 13 |
- |
- |
- |
- |
- |
Not Occupied |
13 |
- |
- |
- |
- |
- |
| 14 |
0.35 |
GY/BN |
3394 |
I |
- |
Driver Outside Rearview Mirror Position Sensor Up [+] Down [-] Signal |
14 |
0.35 |
GY/BN |
3394 |
II |
- |
| 15 |
0.35 |
GY/YE |
1760 |
I |
- |
Left Side Object Detection LED Control |
15 |
0.35 |
GY/YE |
1760 |
II |
- |
| 16 |
0.35 |
BK/YE |
1691 |
I |
- |
Mirror Dimming Low Reference |
16 |
0.35 |
BK/YE |
1691 |
II |
- |
| 17 |
0.35 |
VT/RD |
3392 |
I |
- |
Driver Outside Rearview Mirror Position Sensor 5V Reference |
17 |
0.35 |
VT/RD |
3392 |
II |
- |
| 18 - 22 |
- |
- |
- |
- |
- |
Not Occupied |
18 - 22 |
- |
- |
- |
- |
- |
