Front Wheelhouse Liner Replacement (LTG)

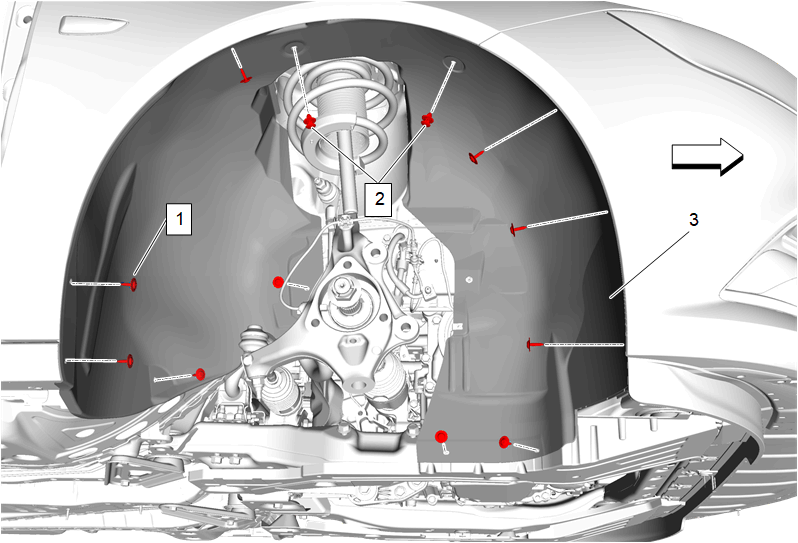

GM5237200Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. If removing the right wheelhouse liner, remove the engine front splash shield. Engine Front Splash Shield Replacement (LTG)
  2. Tire and Wheel Removal and Installation
1 Front Wheelhouse Liner Screw [10x]
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Retainer [2x]
3 Front Wheelhouse Liner
