Engine Front Splash Shield Replacement (LTG)

Courtesy of GENERAL MOTORS COMPANY

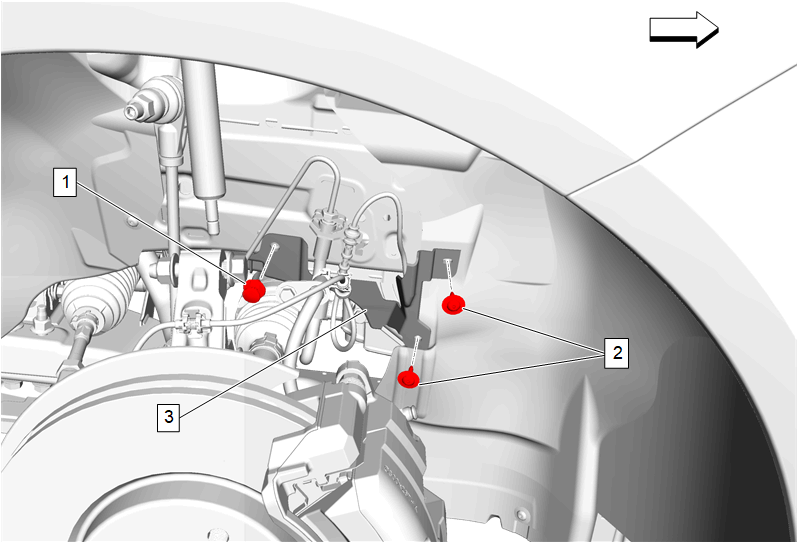

Callout	Component Name
Preliminary Procedure  Remove the right front wheel. Tire and Wheel Removal and Installation
1	Retainer
2	Front Wheelhouse Liner Screw [2x] CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
3	Engine Front Splash Shield
