Liftgate Harness Routing

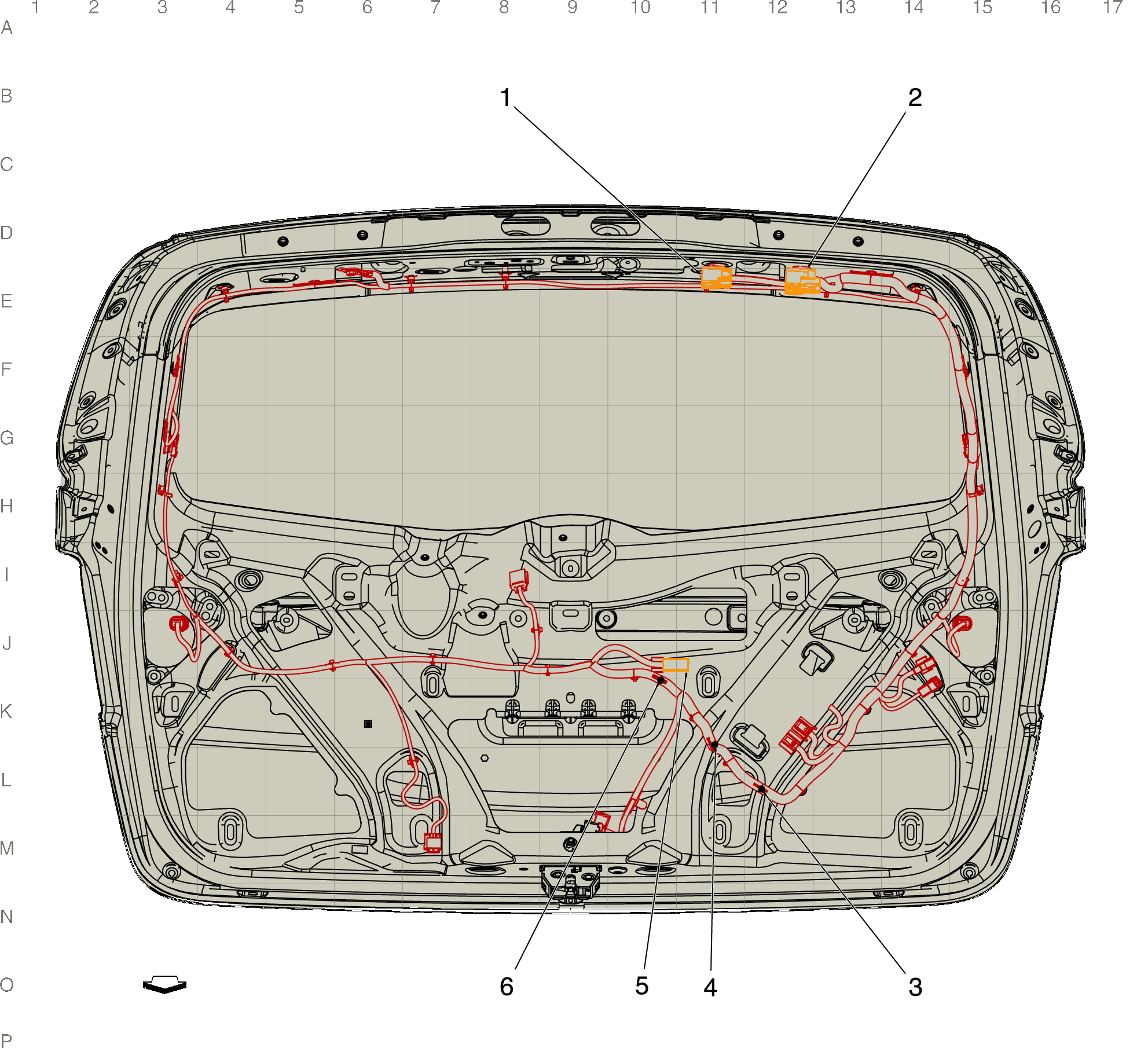

Fig 1: Liftgate Harness Routing
GM4004269Courtesy of GENERAL MOTORS COMPANY
Items
X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Extension Harness to Liftgate Harness
X904 Liftgate Extension Harness to Liftgate Harness X904 Liftgate Extension Harness to Liftgate Harness
J901 Liftgate Harness
J902 Liftgate Harness
X902 License Lamp Harness to Liftgate Harness X902 License Lamp Harness to Liftgate Harness
J903 Liftgate Harness
