Headliner Harness Routing (With Sunroof)

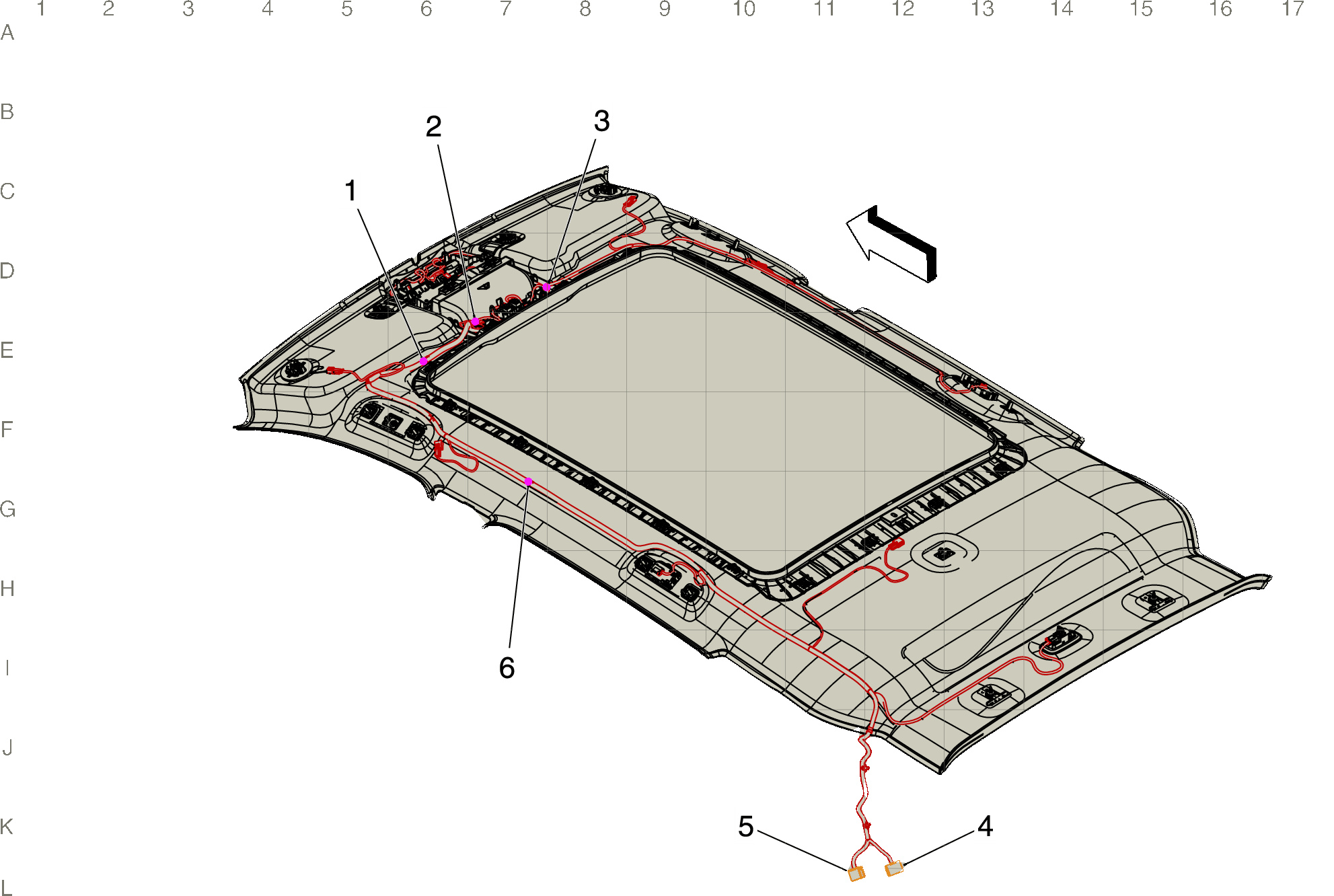

Fig 1: Headliner Harness Routing (With Sunroof)
GM3951774Courtesy of GENERAL MOTORS COMPANY
Items
J359 Headliner Harness
J360 Headliner Harness
J361 Headliner Harness
X408 Headliner Harness to Body Harness X408 Headliner Harness to Body Harness
X407 Headliner Harness to Body Harness X407 Headliner Harness to Body Harness
J362 Headliner Harness
