X408 Headliner Harness to Body Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

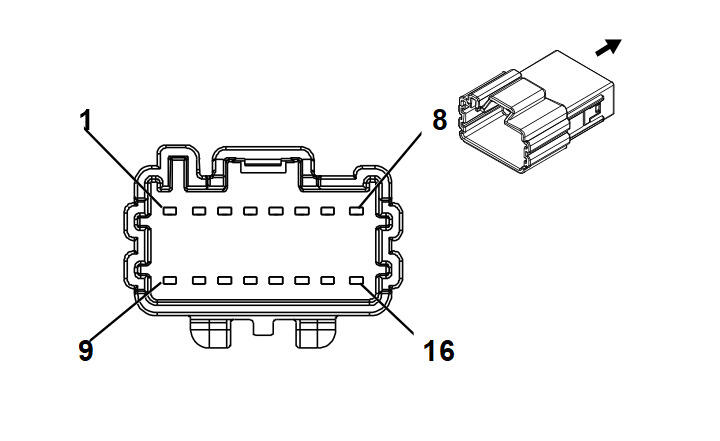

Connector Part Information
- Harness Type: Headliner
- OEM Connector: 6098-8451
- Service Connector: 13517413
- Description: 16-Way F 1.2 Series (BK)
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 6098-7725
- Service Connector: 13597330
- Description: 16-Way M 1.2 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300649 |
J-35616-16 (LT GN) |
J-38125-21 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
19333323 |
J-35616-16 (LT GN) |
J-38125-21 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
19330703 |
J-35616-17 (LT GN) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
3008 |
II |
- |
Noise Reduction Microphone 1 Low Reference |
1 |
0.35 |
GN/BK |
3008 |
III |
- |
| 2 |
0.35 |
GN/BN |
3005 |
II |
- |
Noise Reduction Microphone 1 Signal |
2 |
0.35 |
GN/BN |
3005 |
III |
- |
| 3 |
0.35 |
BU/BK |
3009 |
II |
- |
Noise Reduction Microphone 2 Low Reference |
3 |
0.35 |
BU/BK |
3009 |
III |
- |
| 4 |
0.35 |
BU/YE |
3006 |
II |
- |
Noise Reduction Microphone 2 Signal |
4 |
0.35 |
BU/YE |
3006 |
III |
- |
| 5 |
0.35 |
GY/BN |
3010 |
II |
- |
Noise Reduction Microphone 3 Low Reference |
5 |
0.35 |
GY/BN |
3010 |
III |
- |
| 6 |
0.35 |
GY/BU |
3007 |
II |
- |
Noise Reduction Microphone 3 Signal |
6 |
0.35 |
GY/BU |
3007 |
III |
- |
| 7 |
0.35 |
VT/WH |
5234 |
II |
- |
Passenger Seat Belt Indicator Control |
7 |
0.35 |
VT/WH |
5234 |
III |
- |
| 8 |
0.35 |
BU |
2307 |
I |
- |
Passenger Air Bag On Indicator Control |
8 |
0.35 |
BU |
2307 |
III |
- |
| 9 |
0.35 |
GN |
2308 |
II |
- |
Passenger Air Bag Off Indicator Control |
9 |
0.35 |
GN |
2308 |
III |
- |
| 10 |
0.35 |
GN/BK |
2515 |
II |
- |
Keypad Control |
10 |
0.35 |
GN/BK |
2515 |
III |
- |
| 11 |
0.35 |
GN/WH |
2514 |
II |
- |
Keypad Signal |
11 |
0.35 |
GN/WH |
2514 |
III |
- |
| 12 |
0.35 |
YE/VT |
2516 |
II |
- |
Keypad Green LED Control |
12 |
0.35 |
YE/VT |
2516 |
III |
- |
| 13 |
0.35 |
BN/WH |
2517 |
II |
- |
Keypad Red LED Control |
13 |
0.35 |
BN/WH |
2517 |
III |
- |
| 14 - 16 |
- |
- |
- |
- |
- |
Not Occupied |
14 - 16 |
- |
- |
- |
- |
- |
