Center Console Harness Routing

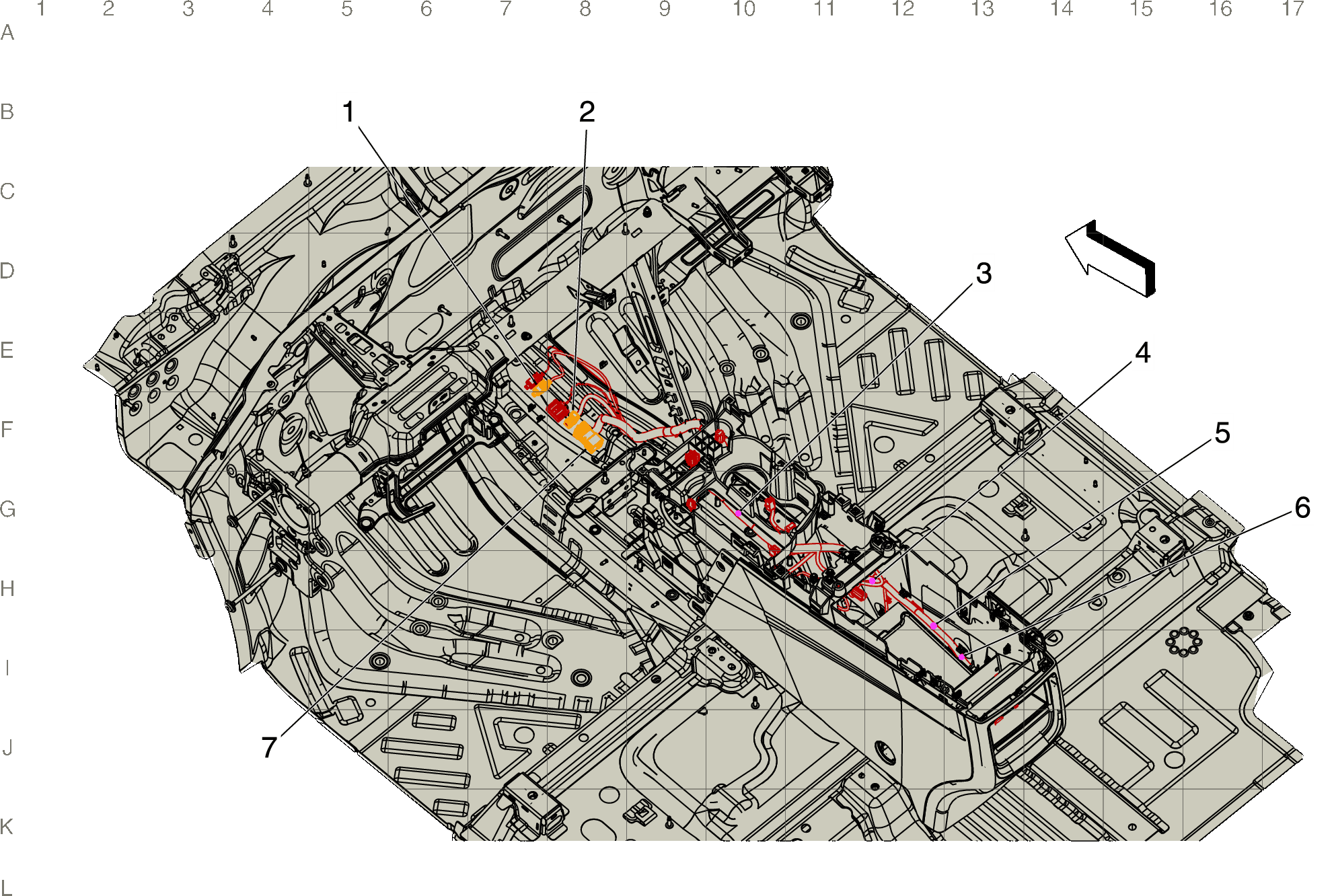

Fig 1: Center Console Harness Routing
GM4004296Courtesy of GENERAL MOTORS COMPANY
Items
X233 Instrument Panel Harness to Floor Console Harness X233 Instrument Panel Harness to Floor Console Harness
X231 Floor Console Harness to Body Harness (KI7) X231 Floor Console Harness to Body Harness (KI7)
J355 Floor Console Harness (KI6)
J356 Floor Console Harness
J357 Floor Console Harness
J358 Floor Console Harness
X232 Floor Console Harness to Instrument Panel Harness X232 Floor Console Harness to Instrument Panel Harness
